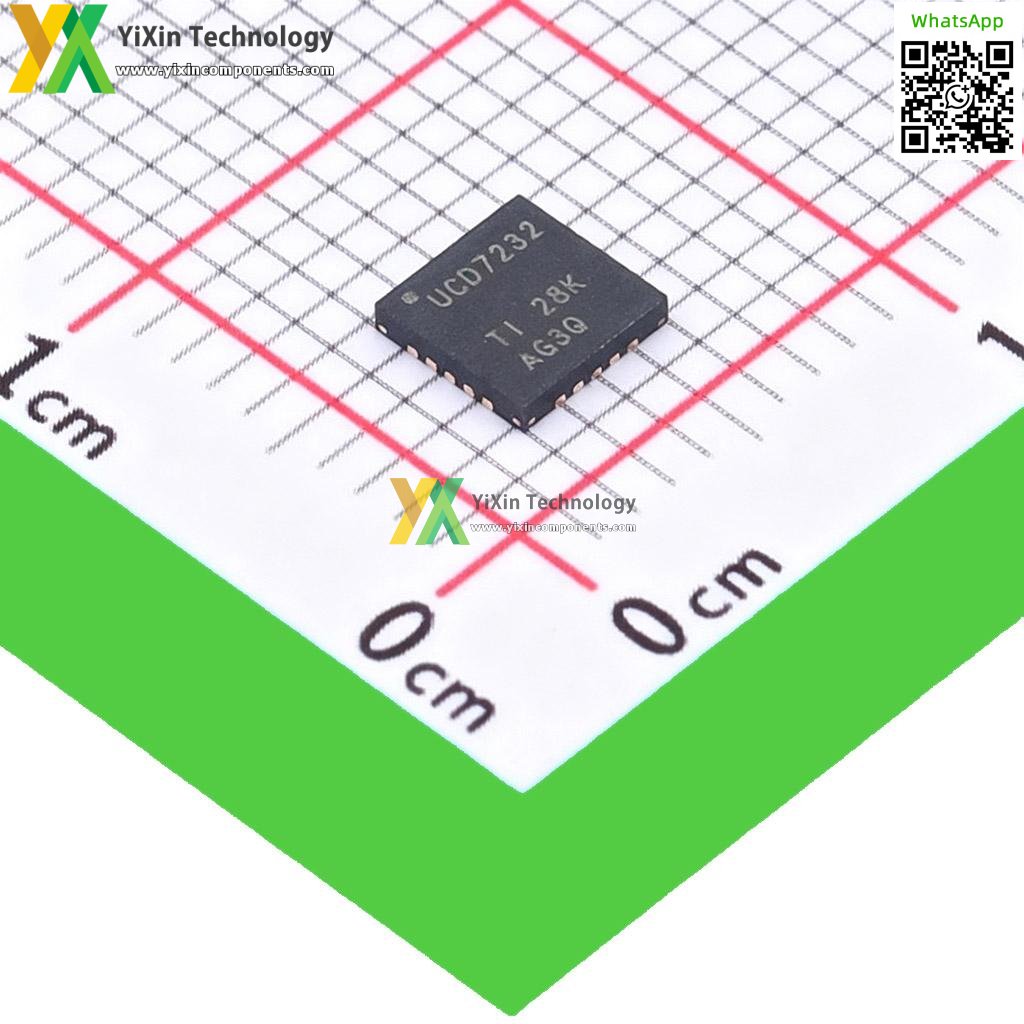

UCD7232RTJR
| Part Number | UCD7232RTJR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC SYNC BUCK GATE DVR 20QFN |
UCD7232RTJR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UCD7232RTJR PCB Footprint and Symbol |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.7V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 27ns, 21ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

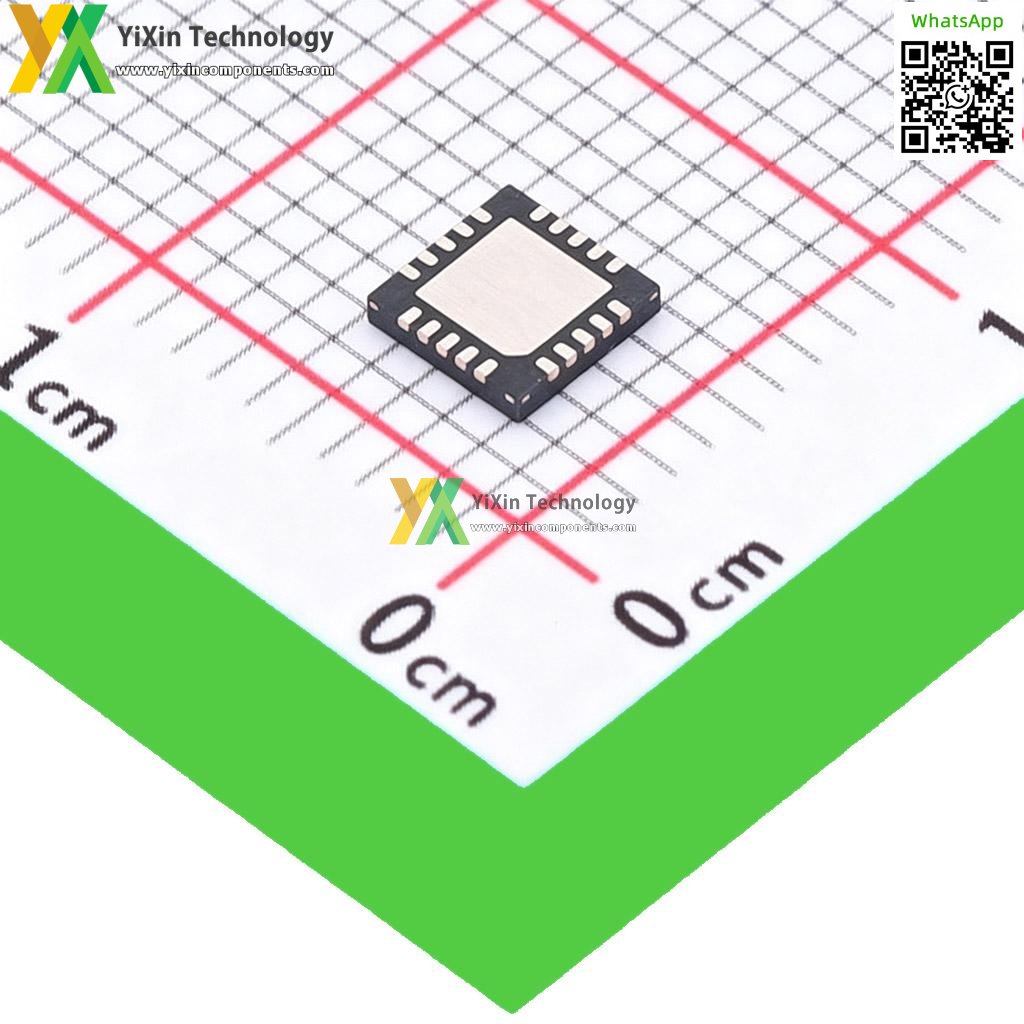

| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| part_number_key_clear | UCD7232RTJR |
Quick Inquiry
| In Stock | 460 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
