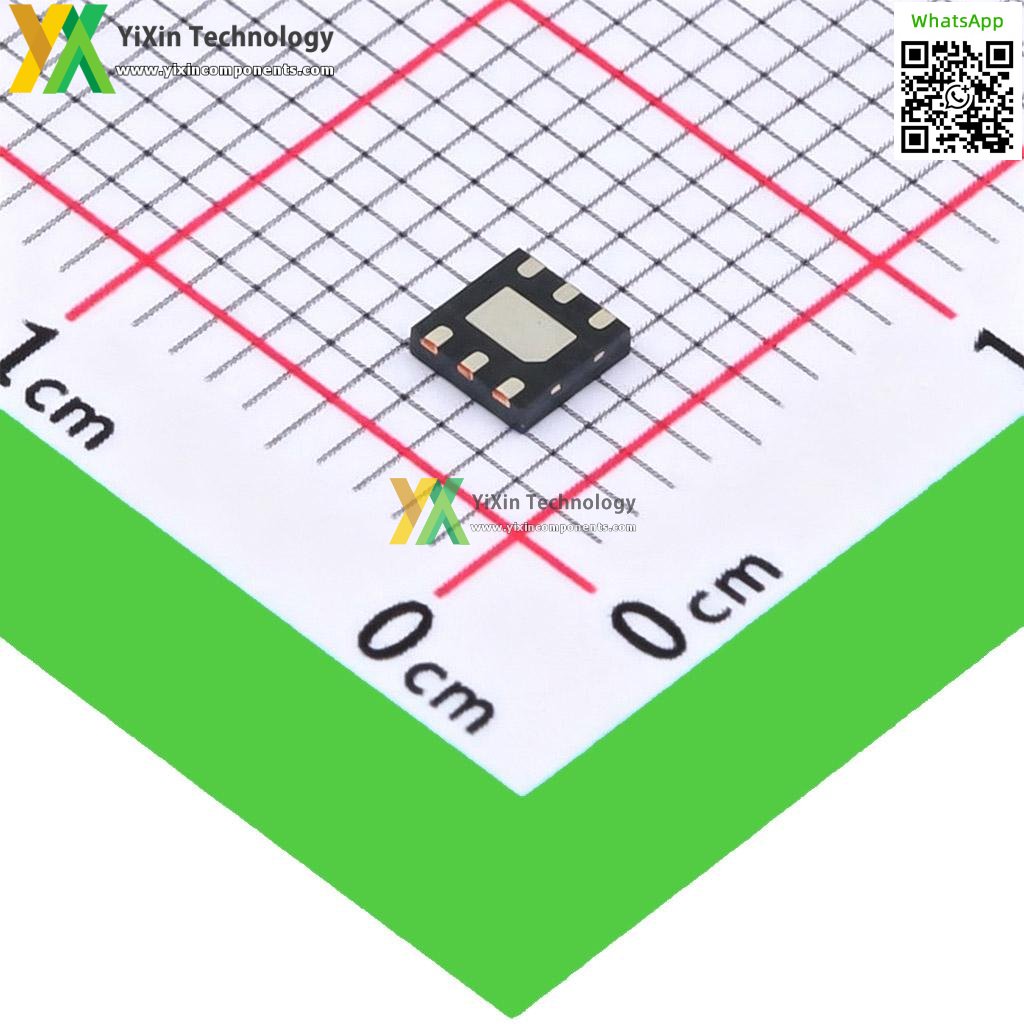

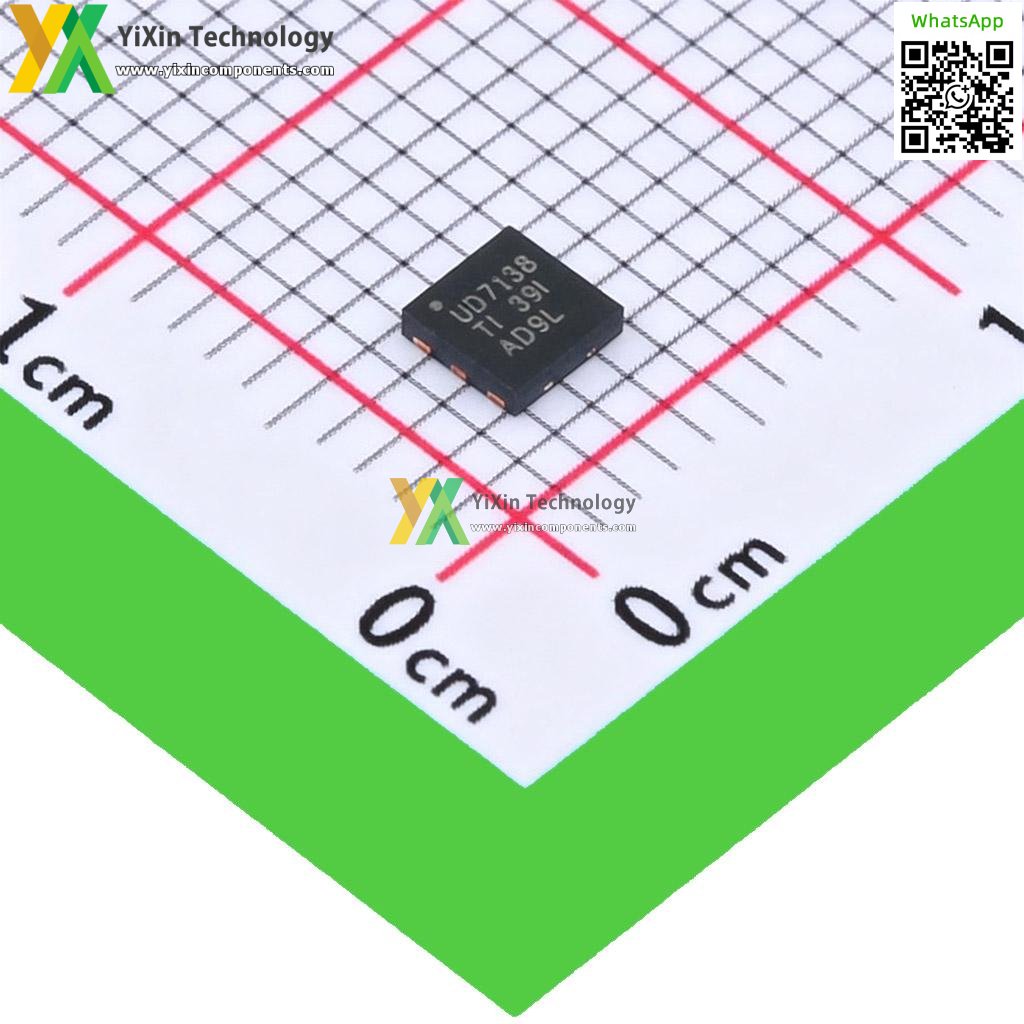

UCD7138DRSR
| Part Number | UCD7138DRSR |
| Category | Power Management ICs |
| Description | IC PWR DRIVER 6SON |
| Brand | Texas Instruments |
UCD7138DRSR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UCD7138DRSR PCB Footprint and Symbol |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 1.08V, 1.93V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 4ns, 3.5ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-SON (3x3) |
| part_number_key_clear | UCD7138DRSR |
