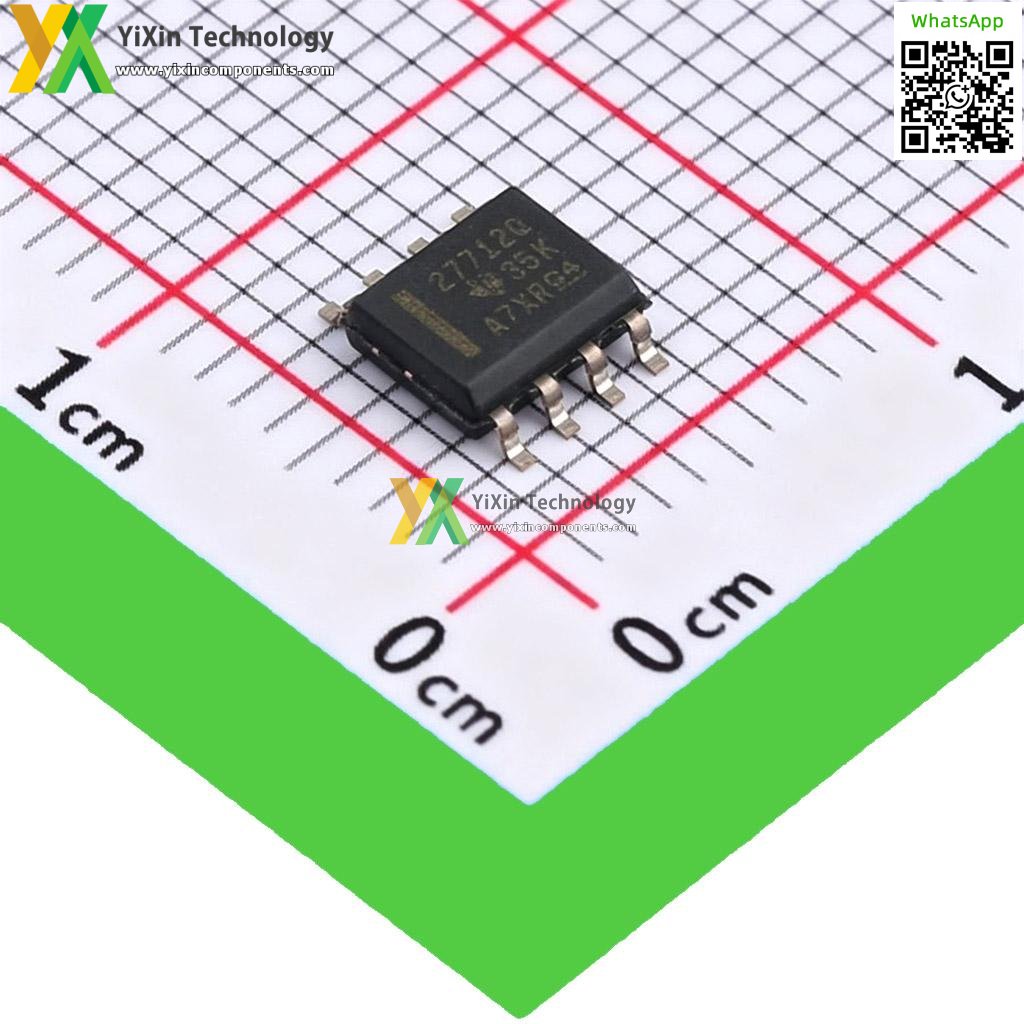

UCC27712QDRQ1
| Part Number | UCC27712QDRQ1 |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | UCC27712QDRQ1 |
UCC27712QDRQ1 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UCC27712QDRQ1 PCB Footprint and Symbol |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | Automotive, AEC-Q100 |
| Driven Configuration | Half-Bridge |
| Channel Type | Synchronous |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 1.5V, 1.6V |
| Current - Peak Output (Source, Sink) | 1.8A, 2.8A |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 700V |
| Rise / Fall Time (Typ) | 16ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| part_number_key_clear | UCC27712QDRQ1 |
