| RoHS |
No RoHS Information
|
| EDA/CAD Models |
TS5A3359DCUR PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Texas Instruments |
| Product Line |
Semiconductors |
| Subcategory |
Analog Switches, Multiplexers, Demultiplexers |
| Series |
- |
| Switch Circuit |
SP3T |
| Multiplexer/Demultiplexer Circuit |
3:1 |
| Number of Circuits |
1 |
| On-State Resistance (Max) |
900mOhm |
| Channel-to-Channel Matching (ΔRon) |
100mOhm |
| Voltage - Supply, Single (V+) |
1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) |
- |
| Switch Time (Ton, Toff) (Max) |
21ns, 10.5ns |
| -3db Bandwidth |
75MHz |
| Charge Injection |
20pC |
| Channel Capacitance (CS(off), CD(off)) |
18pF, 54pF |
| Current - Leakage (IS(off)) (Max) |
20nA |
| Crosstalk |
-64dB @ 1MHz |
| Operating Temperature |
-40°C ~ 85°C (TA) |

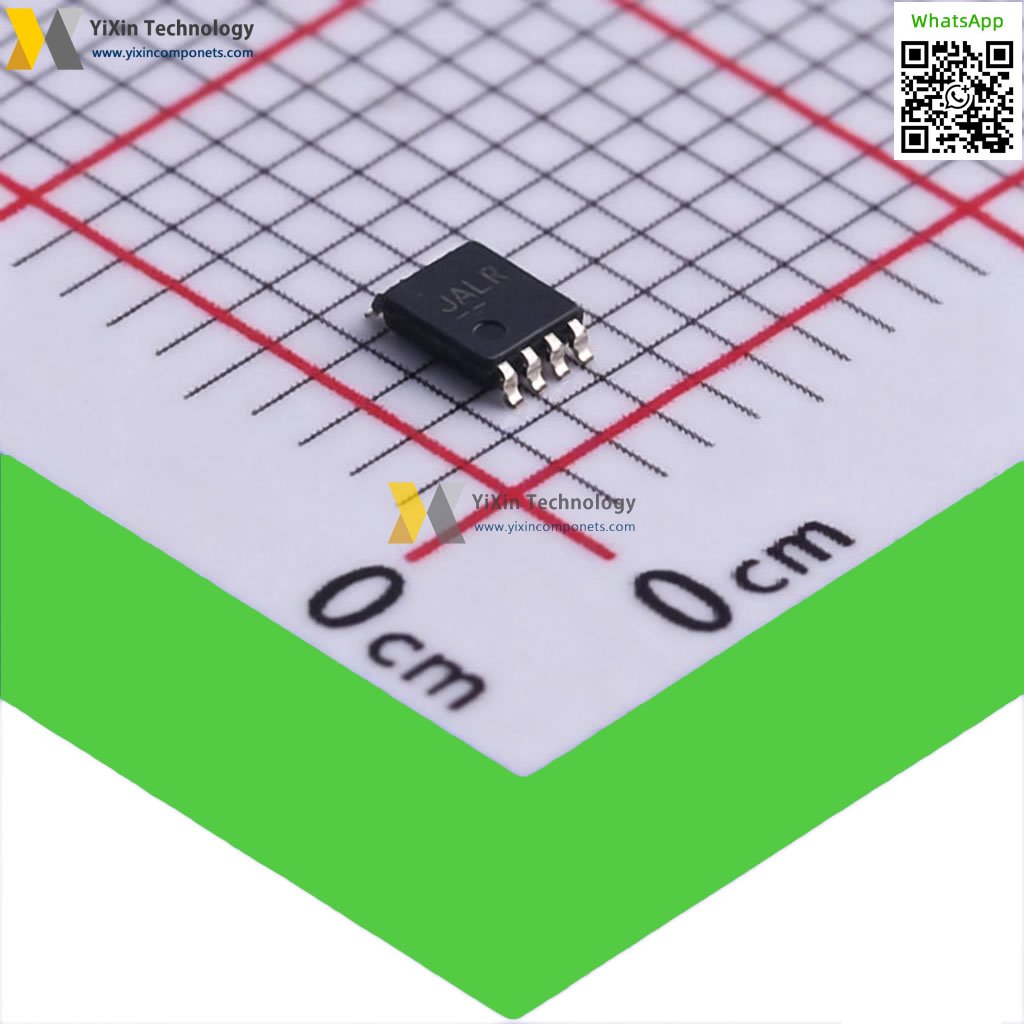

| Package / Case |
8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package |
8-VSSOP |
