| RoHS |
No RoHS Information
|
| EDA/CAD Models |

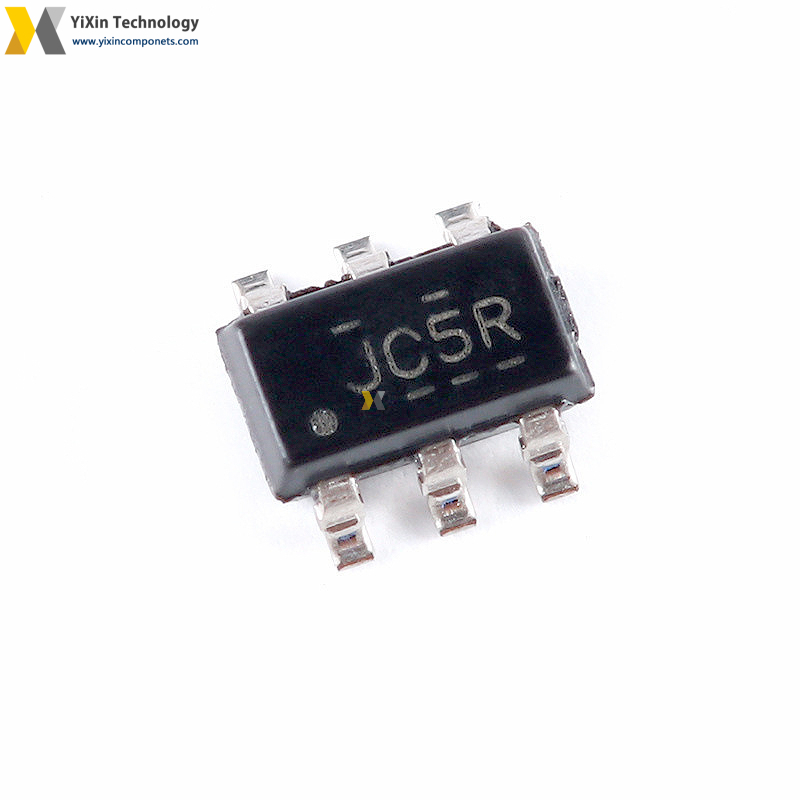

TS5A3157DBVR PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Texas Instruments |
| Product Line |
Semiconductors |
| Subcategory |
Analog Switches, Multiplexers, Demultiplexers |
| Series |
- |
| Switch Circuit |
SPDT |
| Multiplexer/Demultiplexer Circuit |
2:1 |
| Number of Circuits |
1 |
| On-State Resistance (Max) |
10Ohm |
| Channel-to-Channel Matching (ΔRon) |
150mOhm |
| Voltage - Supply, Single (V+) |
1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) |
- |
| Switch Time (Ton, Toff) (Max) |
8.5ns, 6.5ns |
| -3db Bandwidth |
300MHz |
| Charge Injection |
7pC |
| Channel Capacitance (CS(off), CD(off)) |
5.5pF |
| Current - Leakage (IS(off)) (Max) |
100nA |
| Crosstalk |
-66dB @ 10MHz |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Package / Case |
SOT-23-6 |
| Supplier Device Package |
SOT-23-6 |
