| RoHS |
No RoHS Information
|
| EDA/CAD Models |

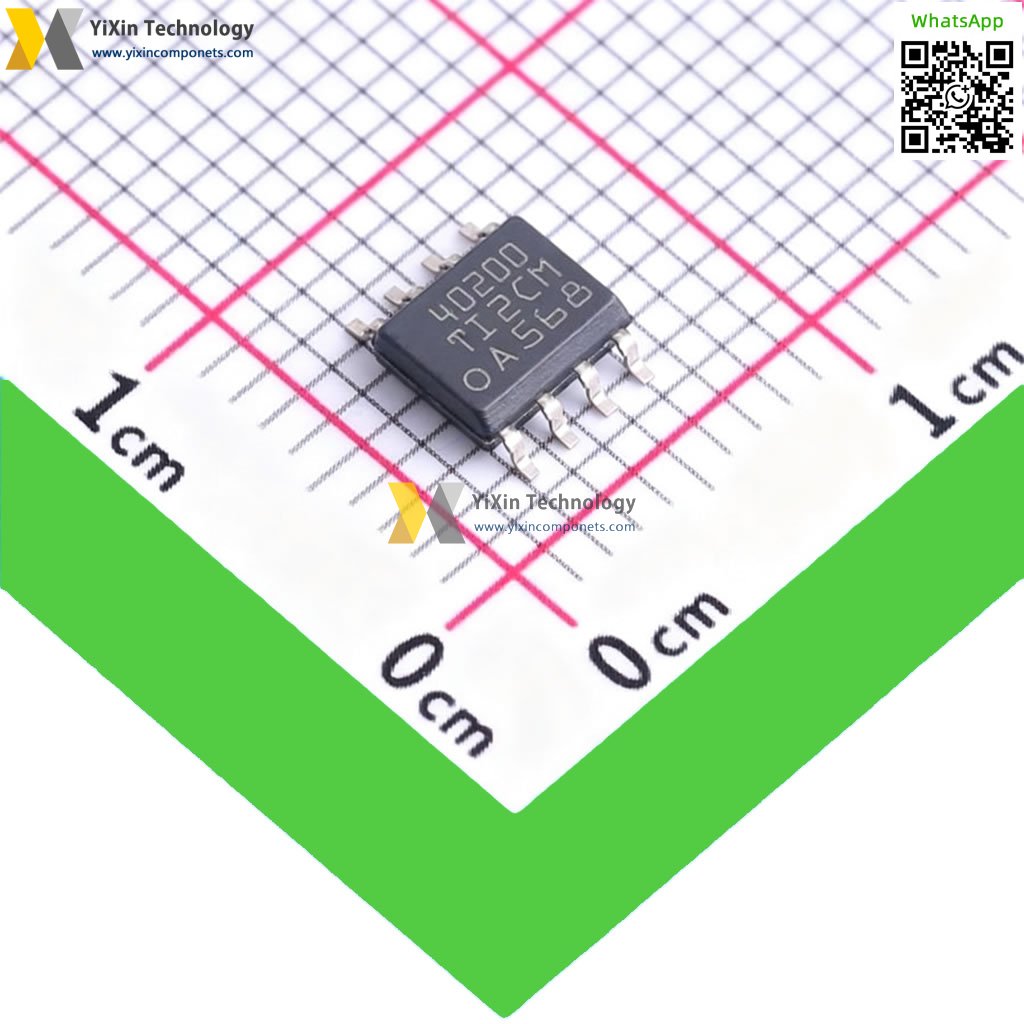

TPS40200DR PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Texas Instruments |
| Product Line |
Semiconductors |
| Subcategory |
Voltage Regulators - DC DC Switching Controllers |
| Series |
- |
| Output Type |
Transistor Driver |
| Function |
Step-Down |
| Output Configuration |
Positive |
| Topology |
Buck |
| Number of Outputs |
1 |
| Output Phases |
1 |
| Voltage - Supply (Vcc/Vdd) |
4.5V ~ 52V |
| Frequency - Switching |
35kHz ~ 500kHz |
| Duty Cycle (Max) |
95% |
| Synchronous Rectifier |
No |
| Clock Sync |
No |
| Serial Interfaces |
- |
| Control Features |
Frequency Control, Soft Start |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Package / Case |
8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package |
8-SOIC |
