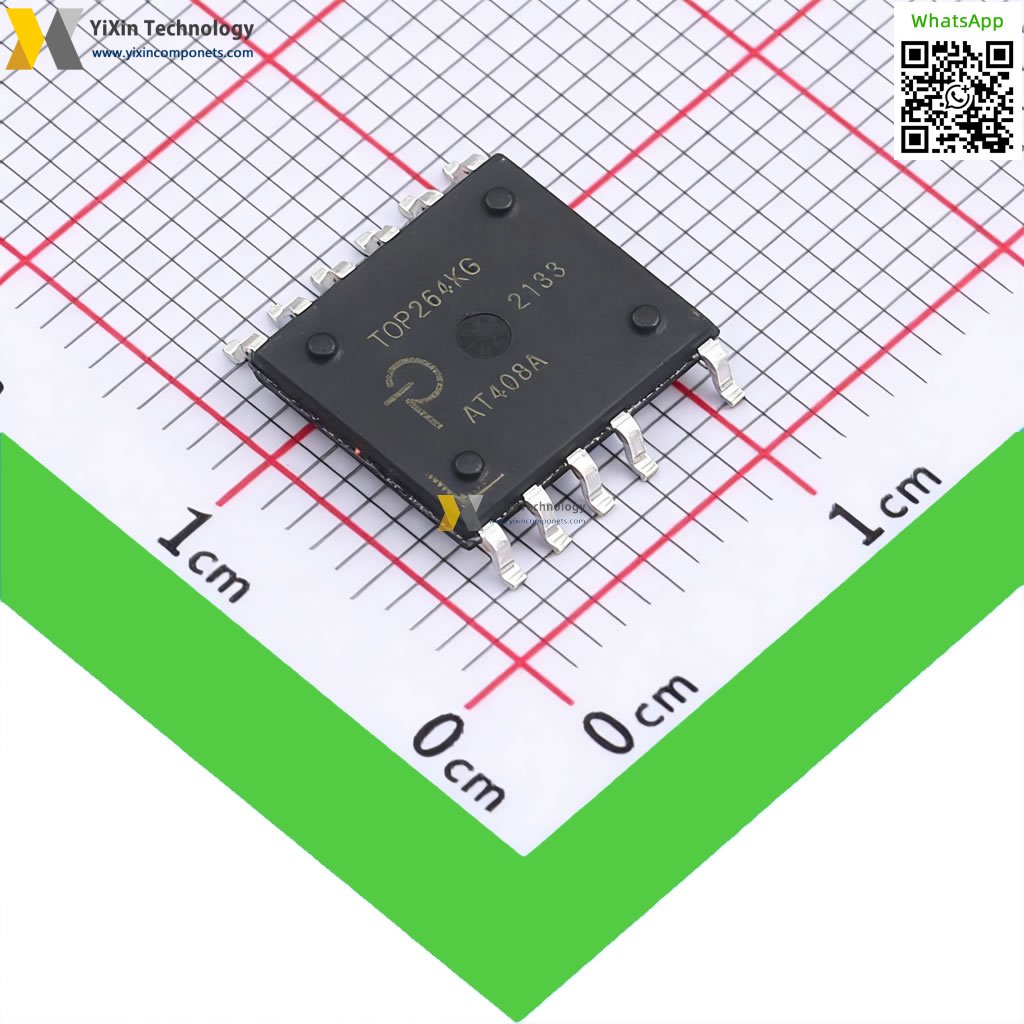

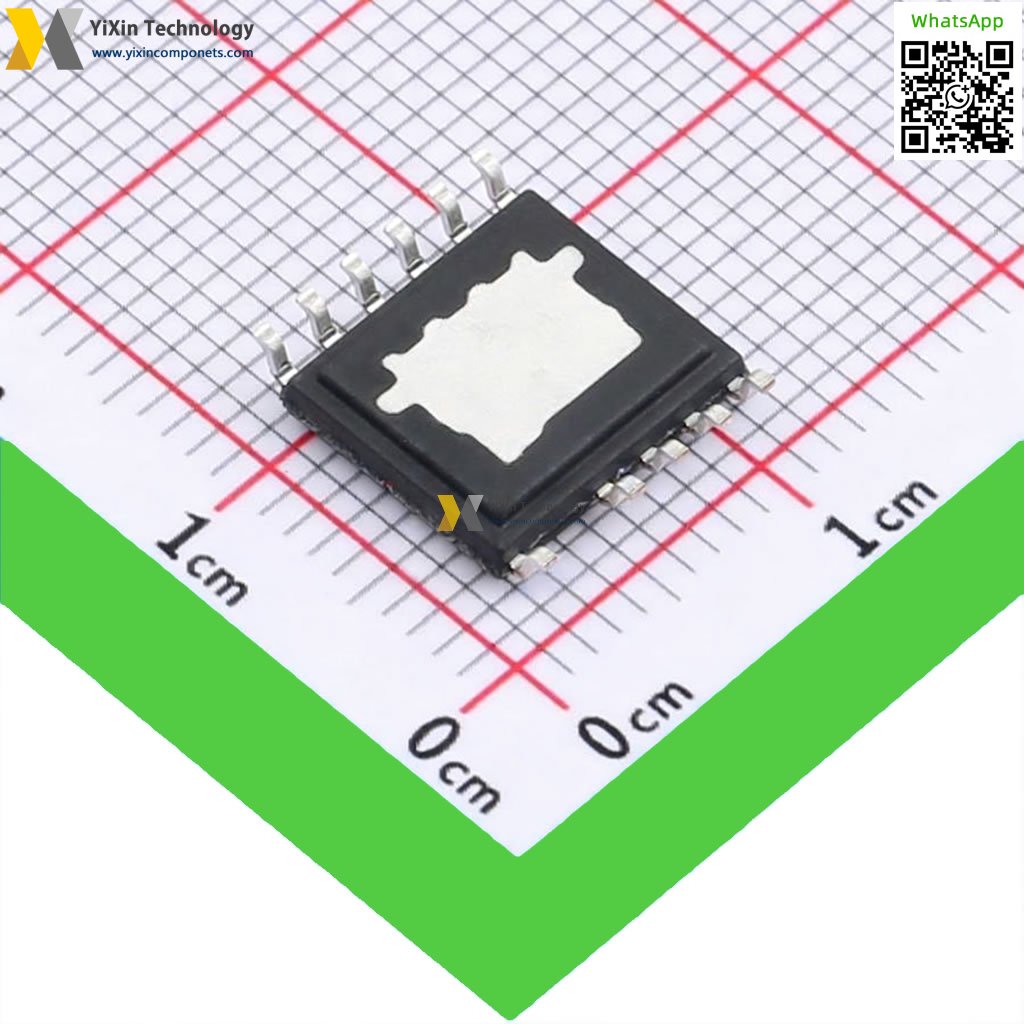

TOP264KG-TL
| Part Number | TOP264KG-TL |
| Manufacturer | Power Integrations |
| Category | Power Management ICs |
| Description | IC OFFLINE SW 30W 49W 12ESOP |
TOP264KG-TL Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TOP264KG-TL PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Power Integrations |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | TOPSwitch®-JX |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 49W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad |
| Supplier Device Package | 12-ESOP |
| Mounting Type | Surface Mount |
