TOP254YN
| Part Number | TOP254YN |
| Manufacturer | Power Integrations |
| Category | Power Management ICs |
| Description | IC OFFLINE SWIT PROG OVP TO220 |
TOP254YN Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TOP254YN PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Power Integrations |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | TOPSwitch®-HX |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 62W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |

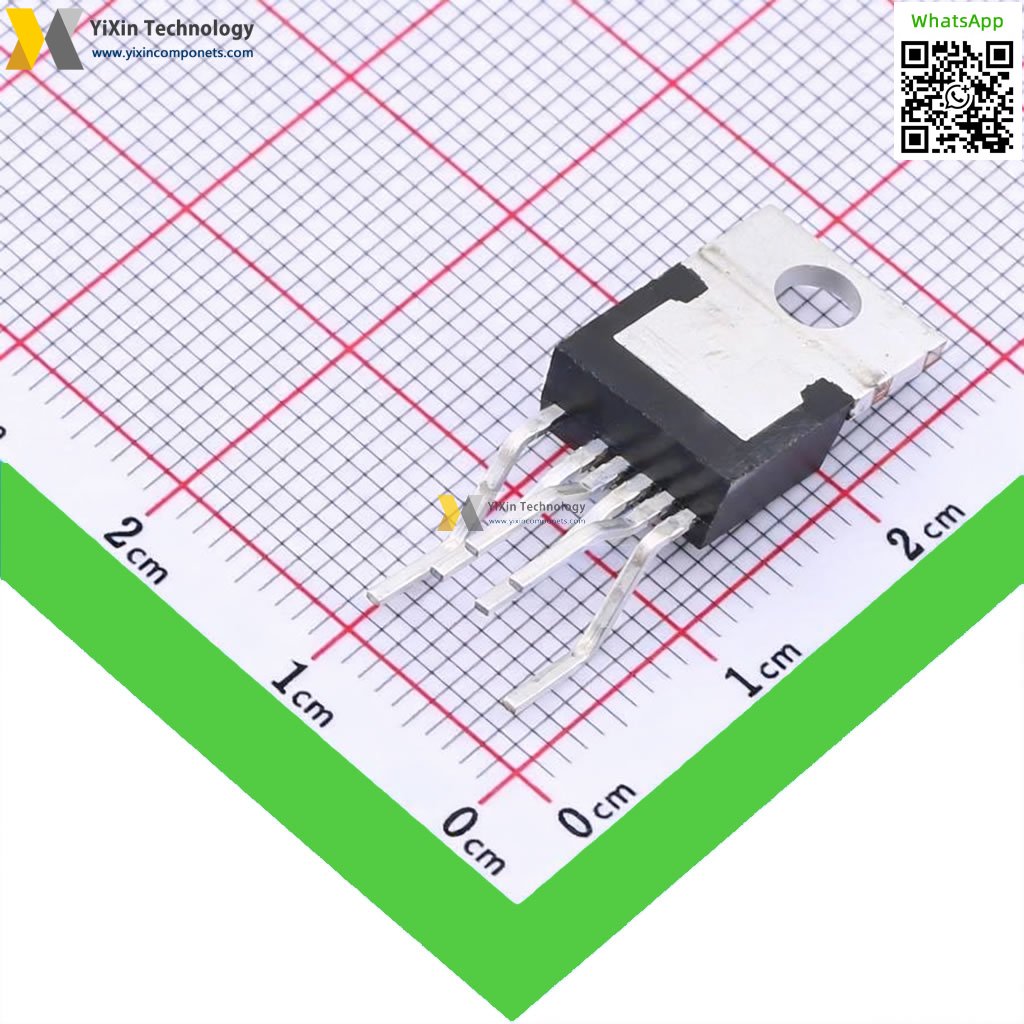

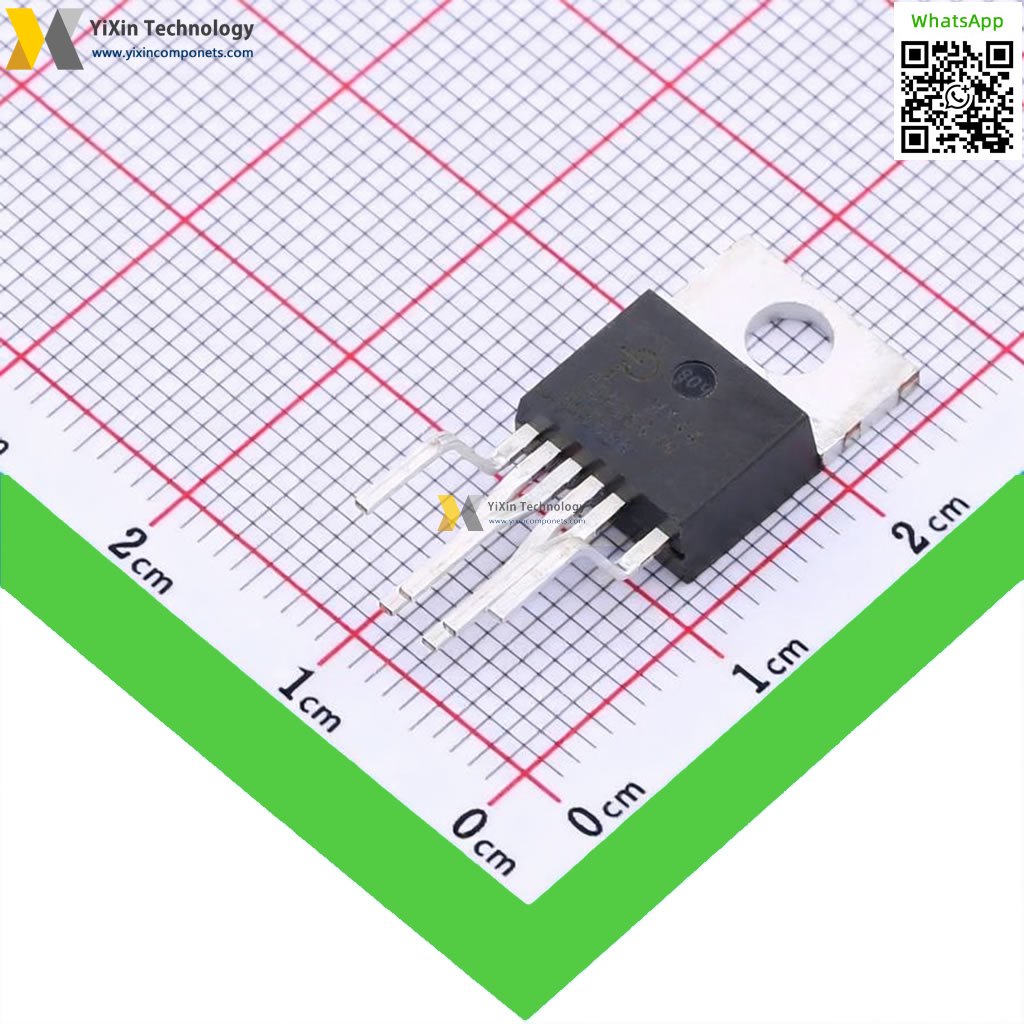

| Package / Case | TO-220-7 (Formed Leads), 6 Leads |
| Supplier Device Package | TO-220-7C |
| Mounting Type | Through Hole |
