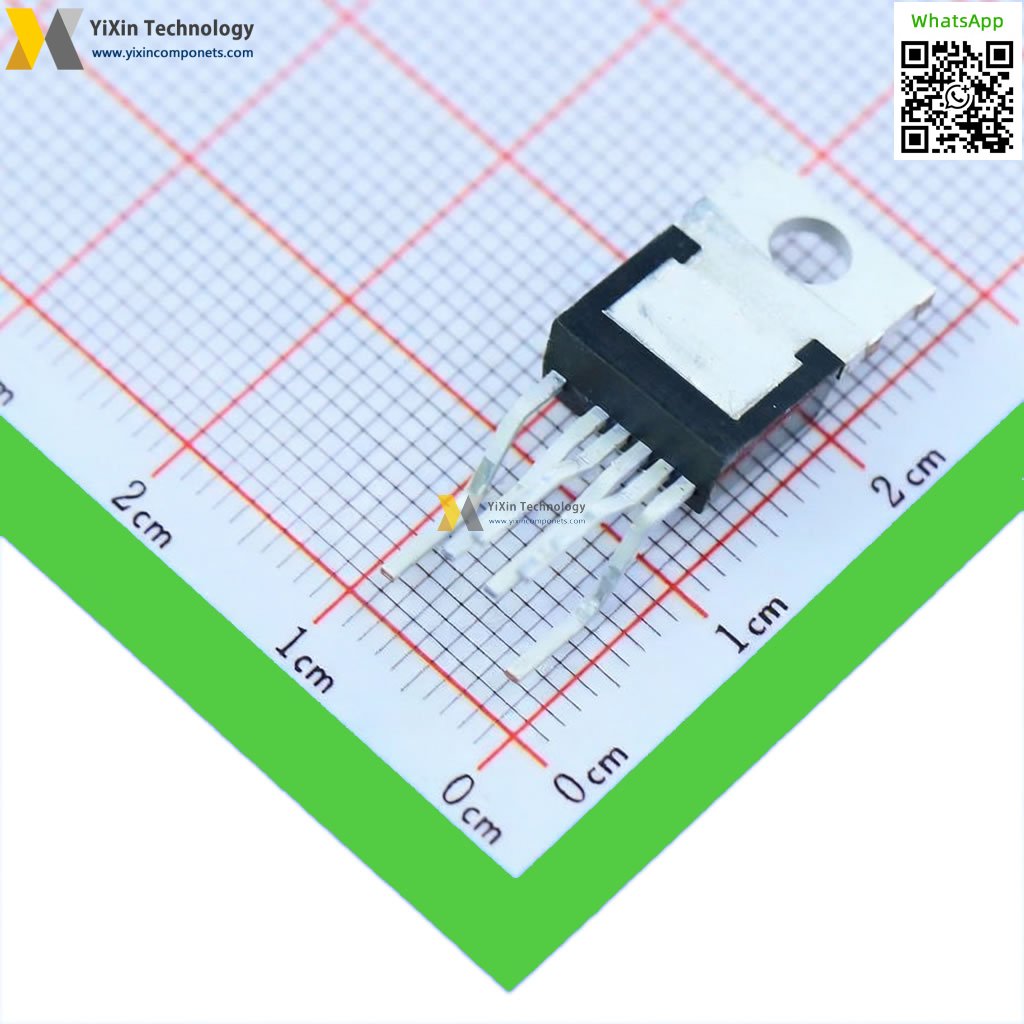

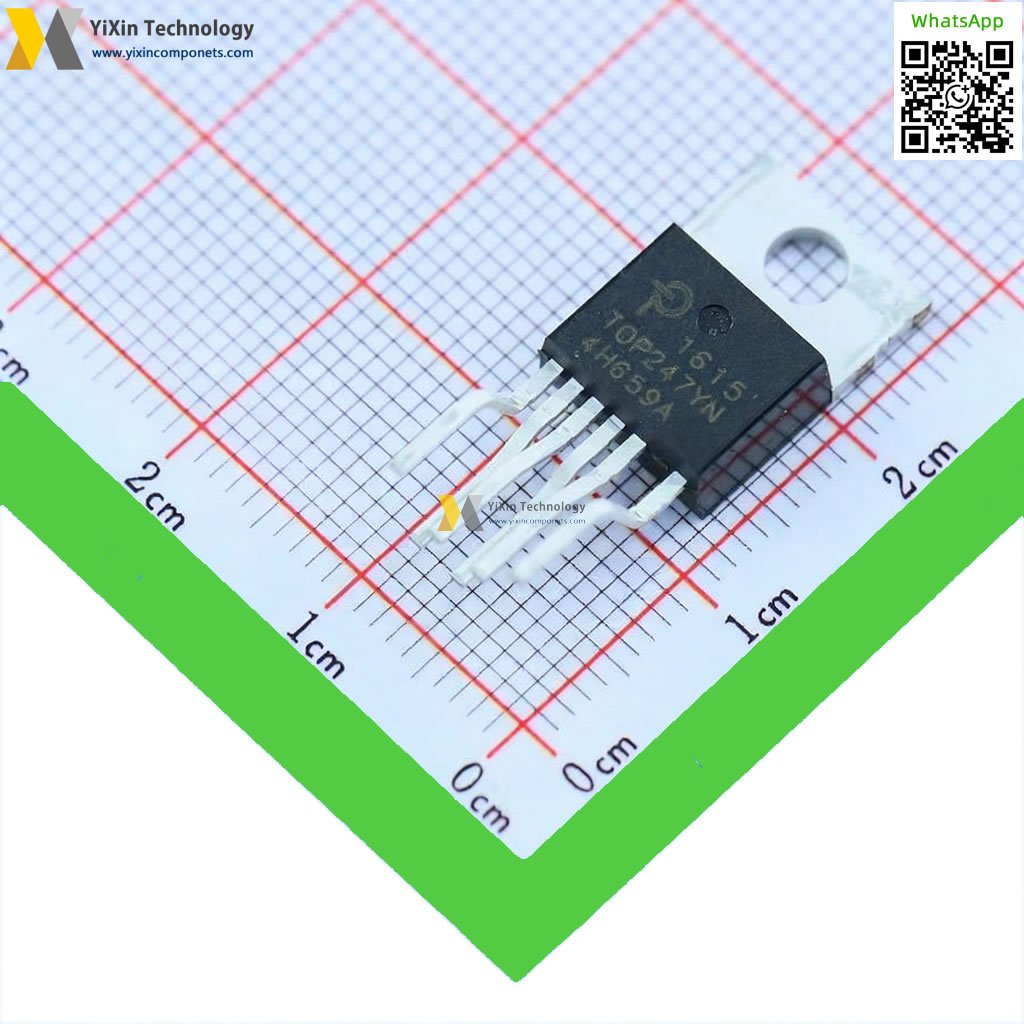

TOP247YN
| Part Number | TOP247YN |
| Manufacturer | Power Integrations |
| Category | Power Management ICs |
| Description | IC OFFLINE SWIT UVLO HV TO220 |
TOP247YN Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TOP247YN PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Power Integrations |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | TOPSwitch®-GX |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.5% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 165W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-220-7 (Formed Leads), 6 Leads |
| Supplier Device Package | TO-220-7C |
| Mounting Type | Through Hole |
Quick Inquiry
| In Stock | 5675 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
