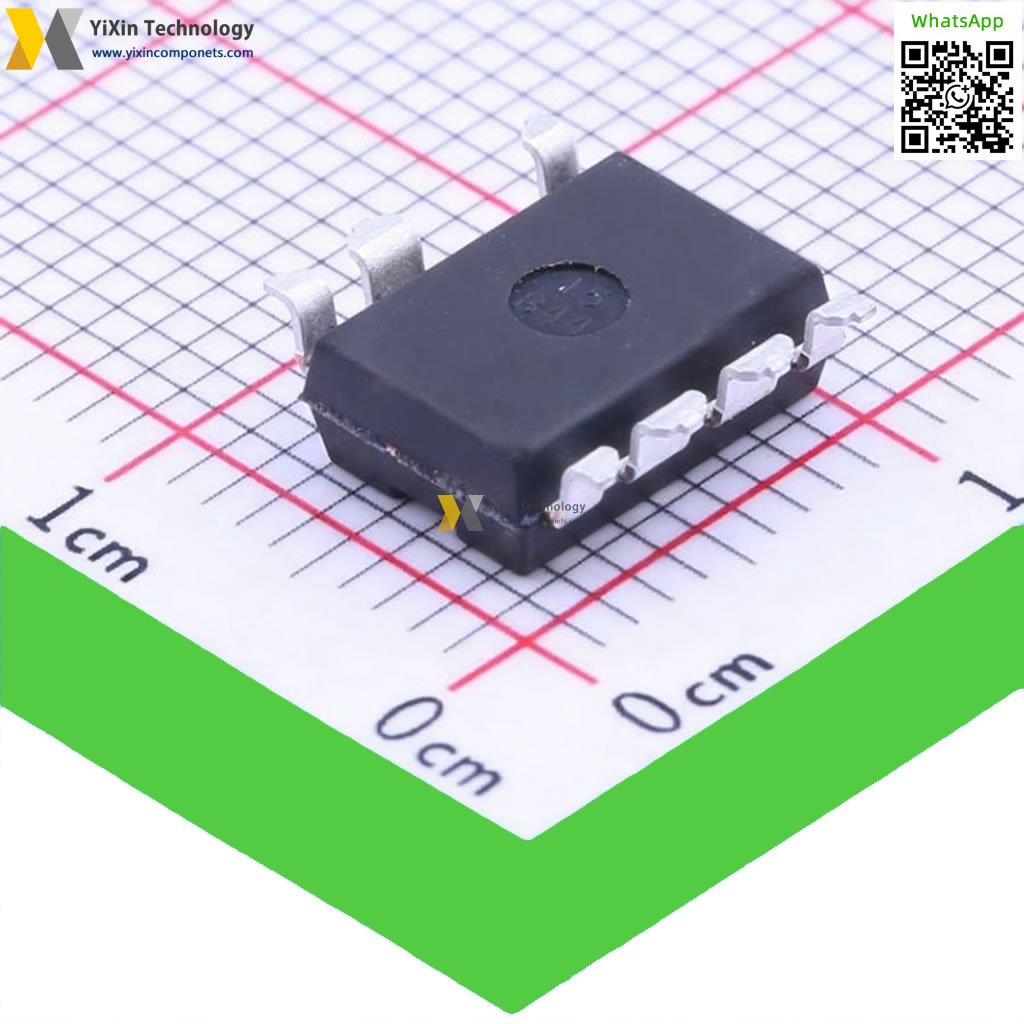

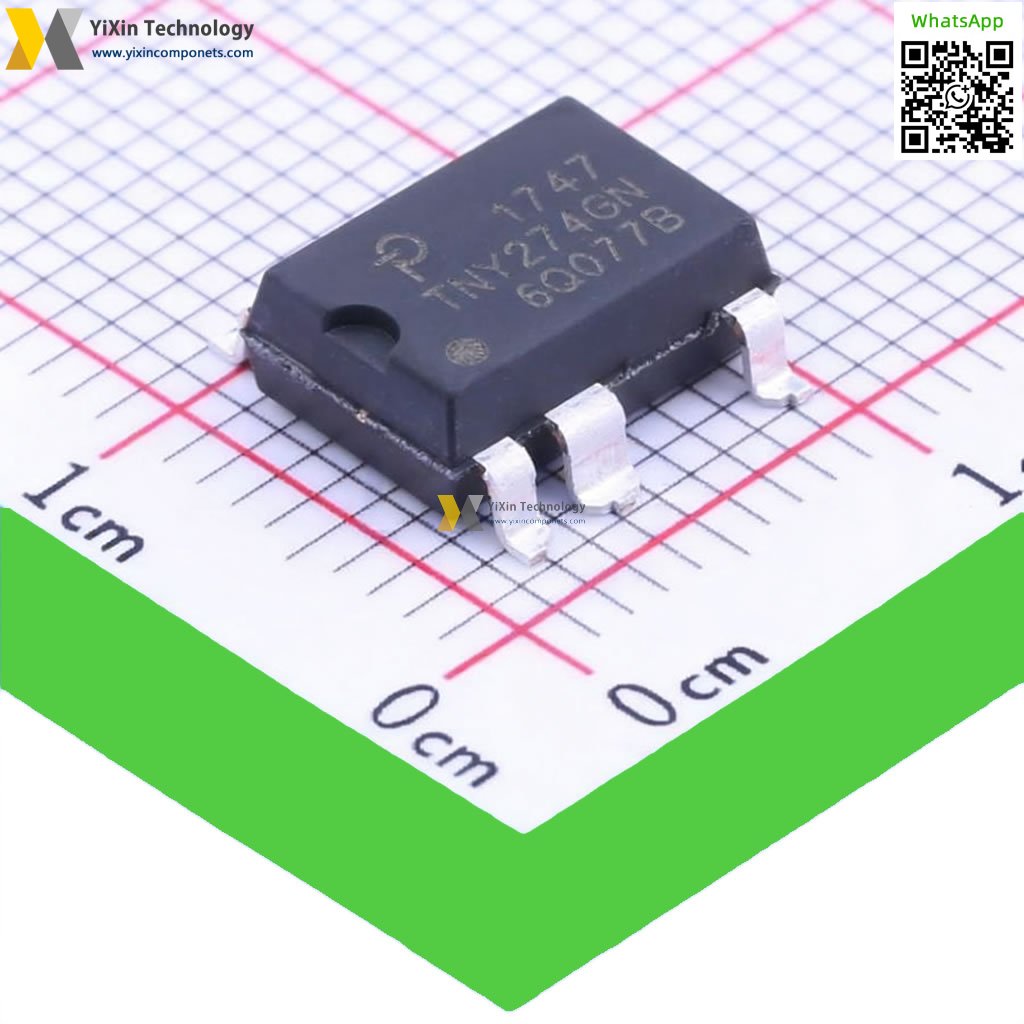

TNY274GN-TL
| Part Number | TNY274GN-TL |
| Manufacturer | Power Integrations |
| Category | Power Management ICs |
| Description | IC OFFLINE SWIT OVP OTP HV 8SMD |
TNY274GN-TL Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TNY274GN-TL PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Power Integrations |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | TinySwitch®-III |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Power (Watts) | 11W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8C |
| Mounting Type | Surface Mount |
