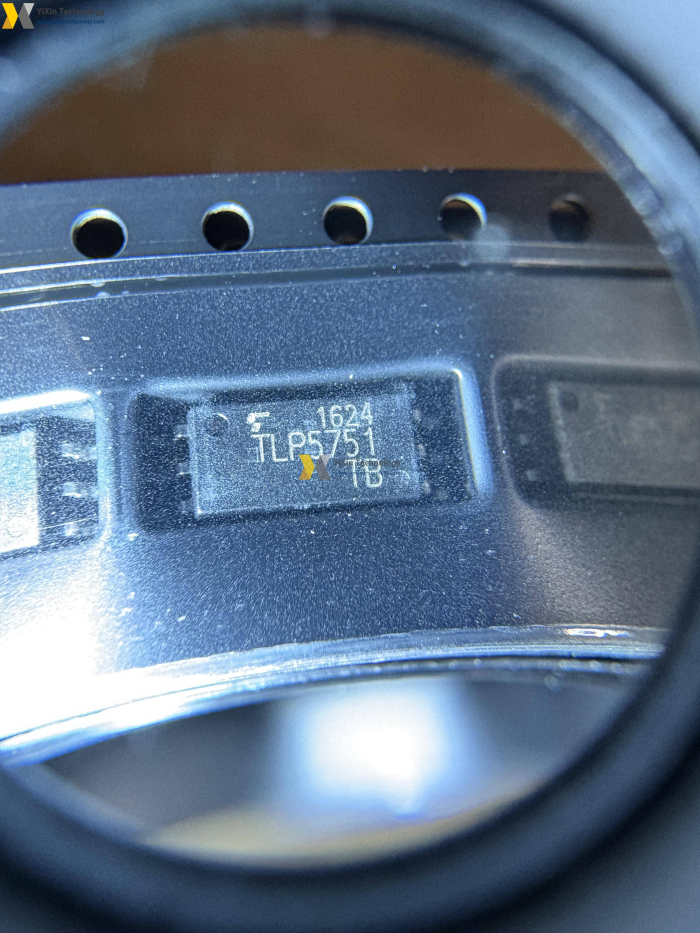

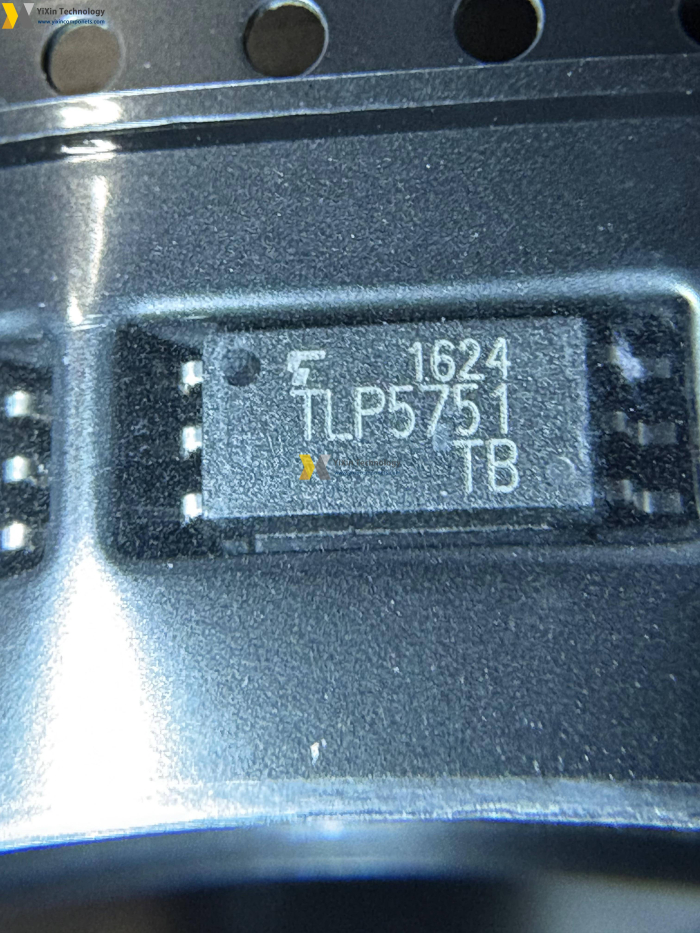

| RoHS |
No RoHS Information
|
| EDA/CAD Models |
TLP5751(TP,E PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Toshiba Semiconductor and Storage |
| Product Line |
Semiconductors |
| Subcategory |
Isolators - Gate Drivers |
| Series |
- |
| Technology |
Optical Coupling |
| Number of Channels |
1 |
| Voltage - Isolation |
5000Vrms |
| Common Mode Transient Immunity (Min) |
35kV/µs |
| Propagation Delay tpLH / tpHL (Max) |
150ns, 150ns |
| Pulse Width Distortion (Max) |
50ns |
| Rise / Fall Time (Typ) |
15ns, 8ns |
| Current - Output High, Low |
1A, 1A |
| Current - Peak Output |
1A |
| Voltage - Forward (Vf) (Typ) |
1.55V |
| Current - DC Forward (If) (Max) |
20mA |
| Voltage - Output Supply |
15V ~ 30V |
| Operating Temperature |
-40°C ~ 110°C |
| Mounting Type |
Surface Mount |
| Package / Case |
6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package |
6-SO |
| Approvals |
CQC, CSA, cUL, UL |
