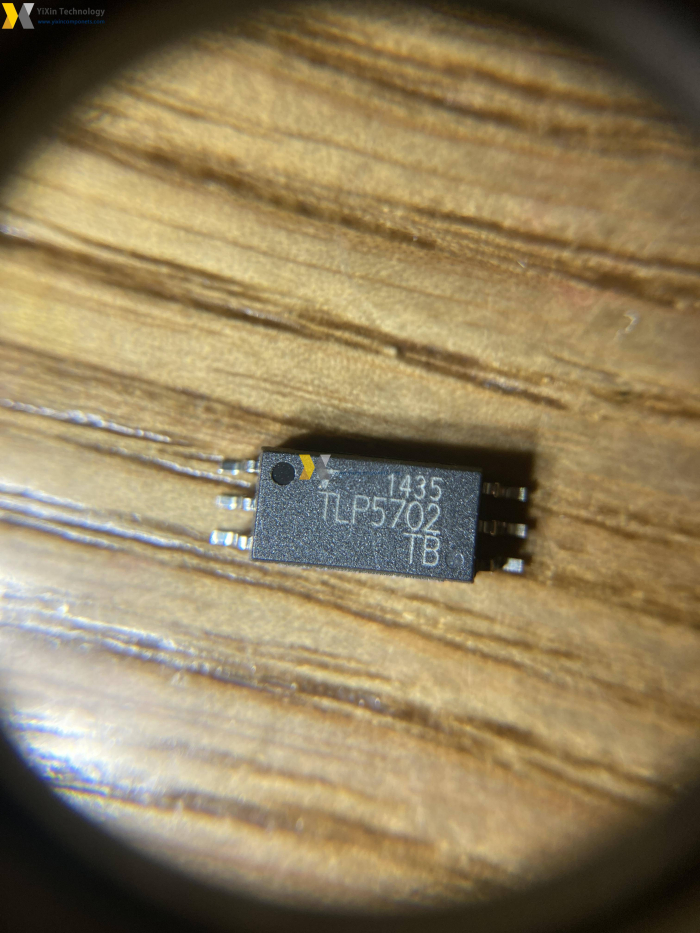

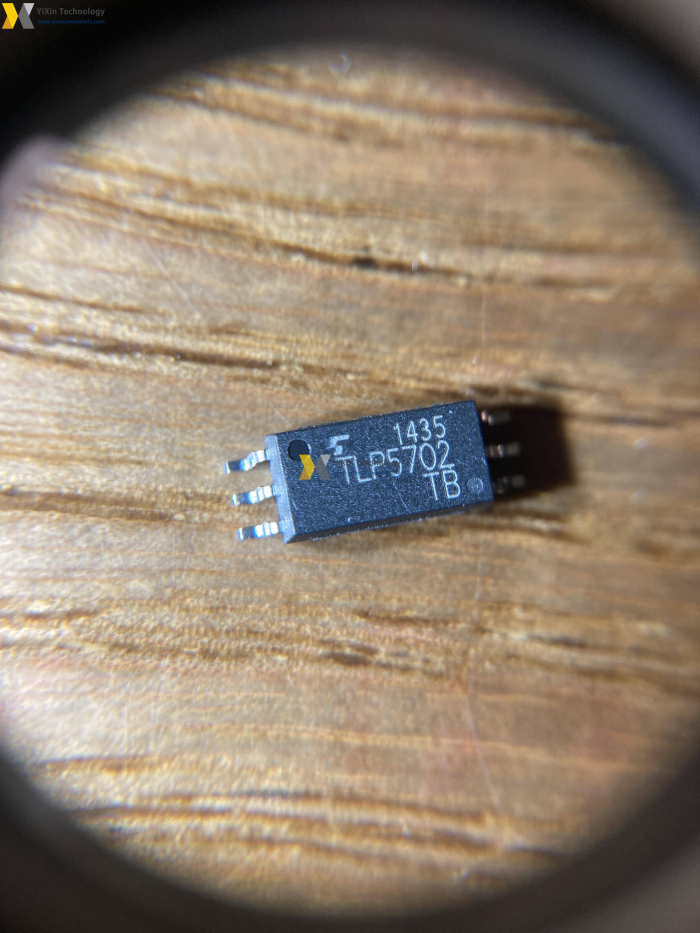

TLP5702(TP,E
| Part Number | TLP5702(TP,E |
| Manufacturer | Toshiba Semiconductor and Storage |
| Category | Isolators |
| Description | X36 PB-F DRIVER COUPLER 2.5A FAS |
TLP5702(TP,E Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TLP5702(TP,E PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Toshiba Semiconductor and Storage |
| Product Line | Semiconductors |
| Subcategory | Optoisolators - Logic Output |
| Series | - |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 1A |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Rise / Fall Time (Typ) | 15ns, 8ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 15V ~ 30V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 6-SO |
Quick Inquiry
| In Stock | 370 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
