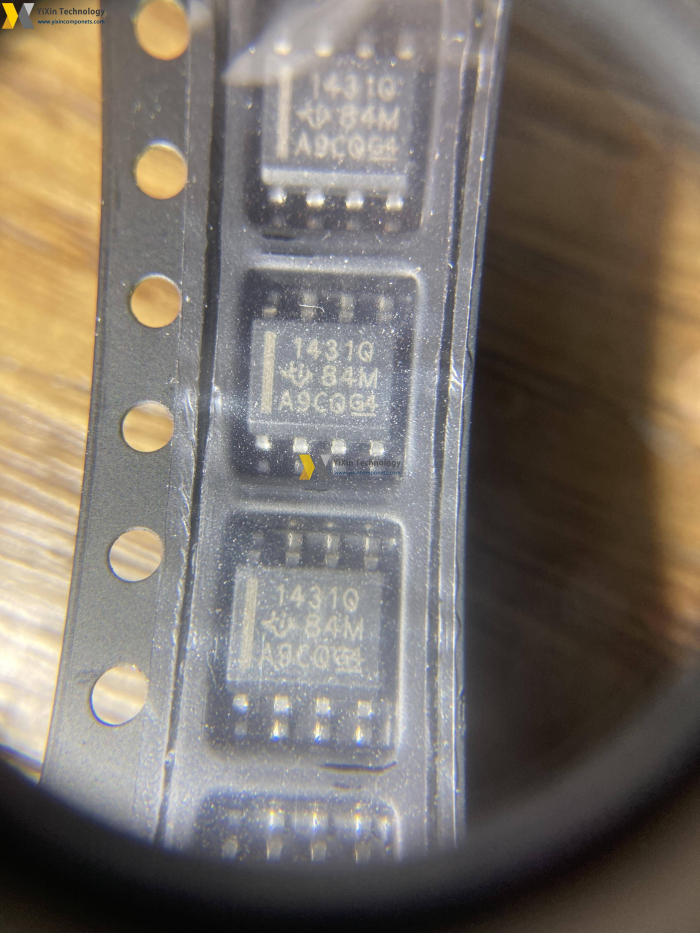

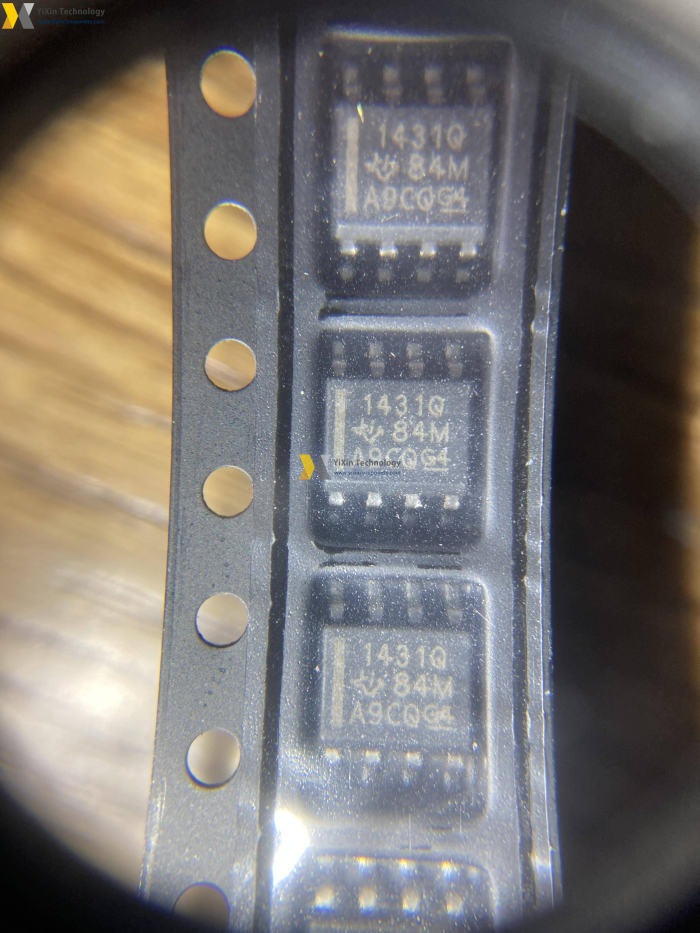

TL1431QDR
| Part Number | TL1431QDR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC VREF SHUNT ADJ 8SOIC |
TL1431QDR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TL1431QDR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Reference |
| Series | - |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 36V |
| Current - Output | 100mA |
| Tolerance | ±0.4% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 1mA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Quick Inquiry
| In Stock | 6244 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
