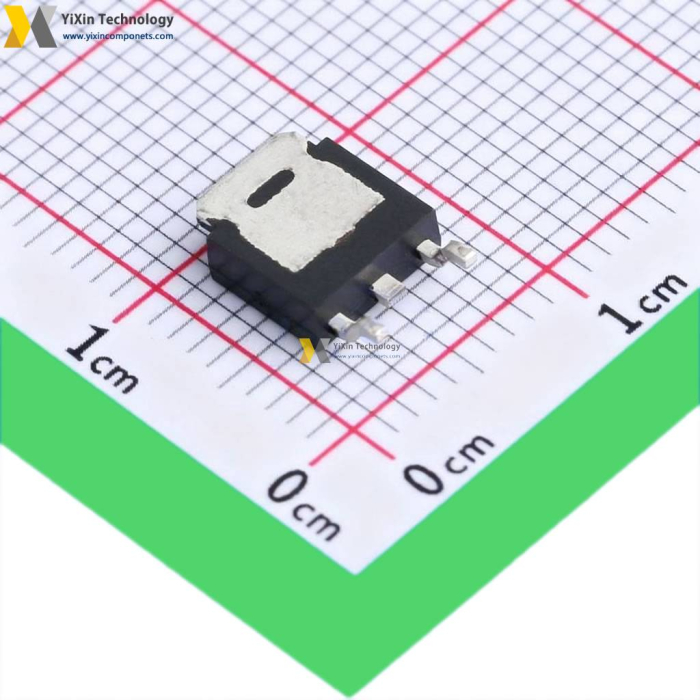

TK2P60D(TE16L1,NQ)
| Part Number | TK2P60D(TE16L1,NQ) |
| Manufacturer | Toshiba Semiconductor and Storage |
| Category | Transistors |
| Description | MOSFET N-CH 600V 2A PW-MOLD |
TK2P60D(TE16L1,NQ) Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TK2P60D(TE16L1,NQ) PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Toshiba Semiconductor and Storage |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | π-MOSVII |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.3Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 4.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 280pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PW-MOLD |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
