| RoHS |
No RoHS Information
|
| EDA/CAD Models |

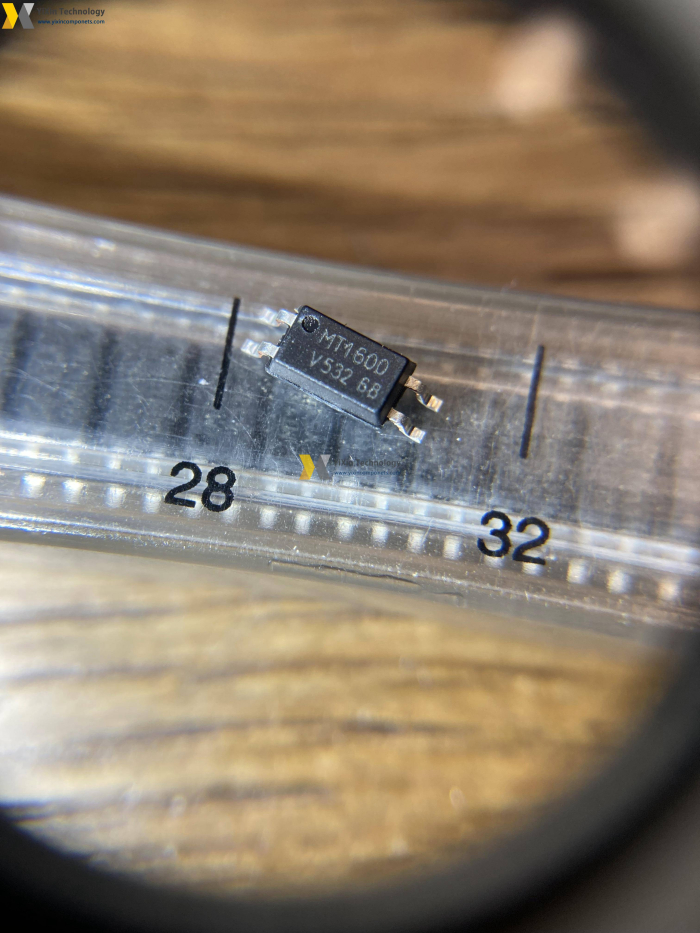

TCMT1600 PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Vishay Semiconductor Opto Division |
| Product Line |
Semiconductors |
| Subcategory |
Optoisolators - Transistor, Photovoltaic Output |
| Series |
- |
| Number of Channels |
1 |
| Voltage - Isolation |
3750Vrms |
| Current Transfer Ratio (Min) |
80% @ 5mA |
| Current Transfer Ratio (Max) |
300% @ 5mA |
| Turn On / Turn Off Time (Typ) |
6µs, 5µs |
| Rise / Fall Time (Typ) |
3µs, 4.7µs |
| Input Type |
AC, DC |
| Output Type |
Transistor |
| Voltage - Output (Max) |
70V |
| Current - Output / Channel |
50mA |
| Voltage - Forward (Vf) (Typ) |
1.35V |
| Current - DC Forward (If) (Max) |
60mA |
| Vce Saturation (Max) |
300mV |
| Operating Temperature |
-40°C ~ 100°C |
| Mounting Type |
Surface Mount |
| Package / Case |
4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package |
4-SOP |
