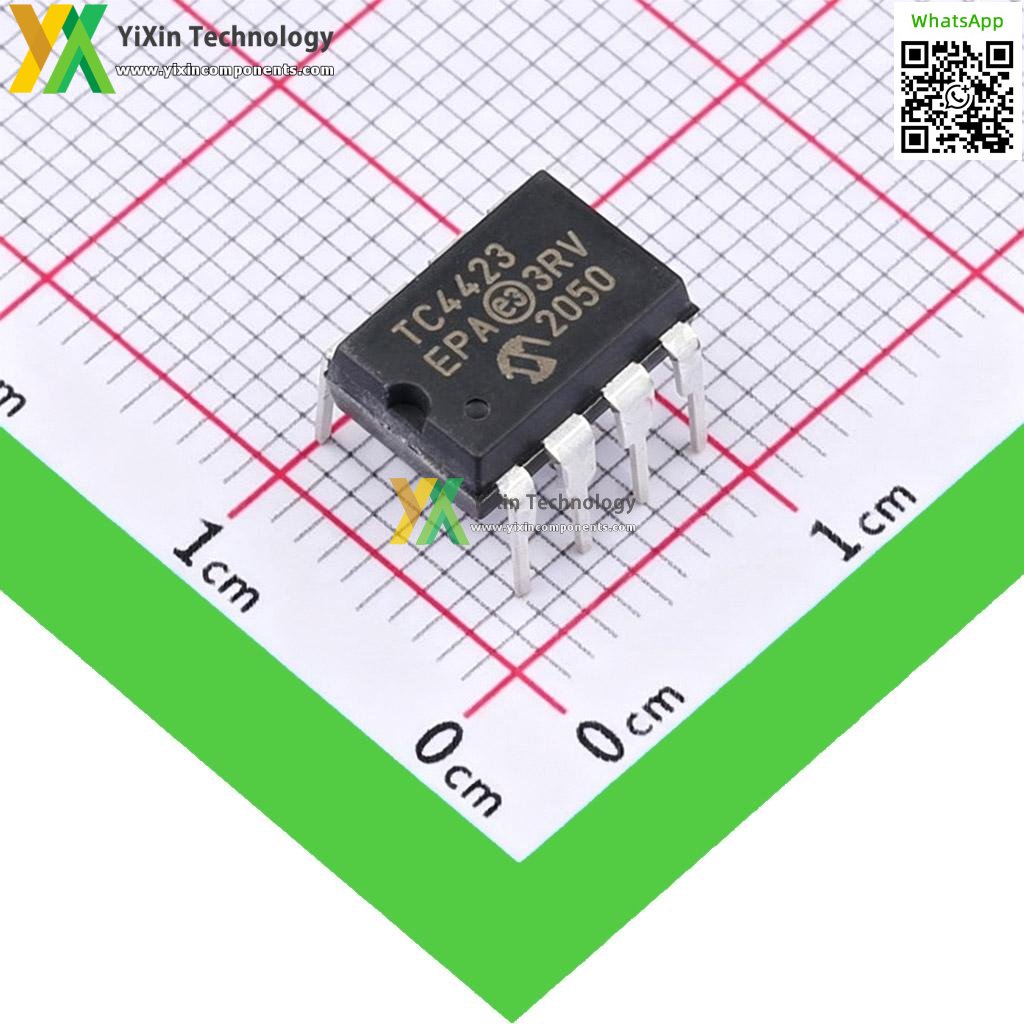

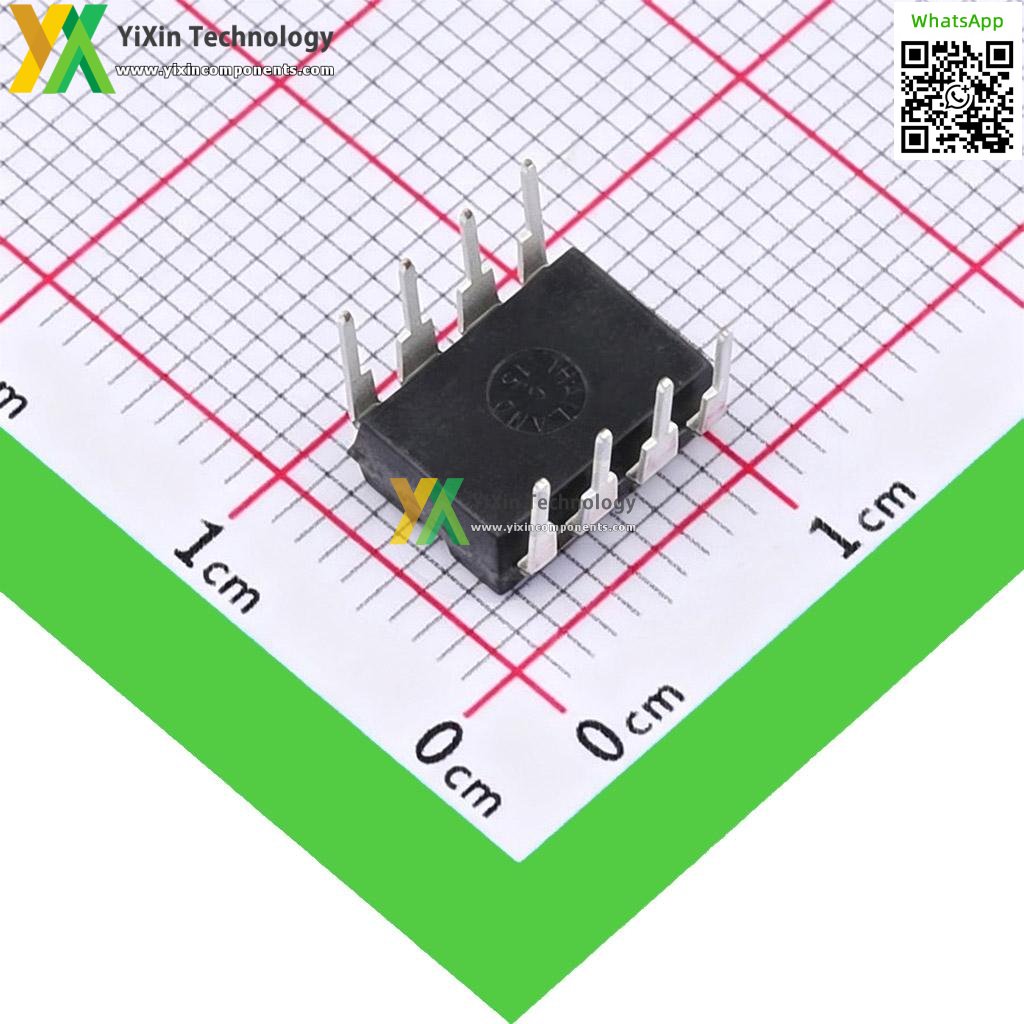

TC4423EPA
| Part Number | TC4423EPA |
| Category | Power Management ICs |
| Description | IC MOSFET DVR 3A DUAL HS 8-DIP |
| Brand | Microchip Technology |
TC4423EPA Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TC4423EPA PCB Footprint and Symbol |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 23ns, 25ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| part_number_key_clear | TC4423EPA |
Quick Inquiry
| In Stock | 133 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
