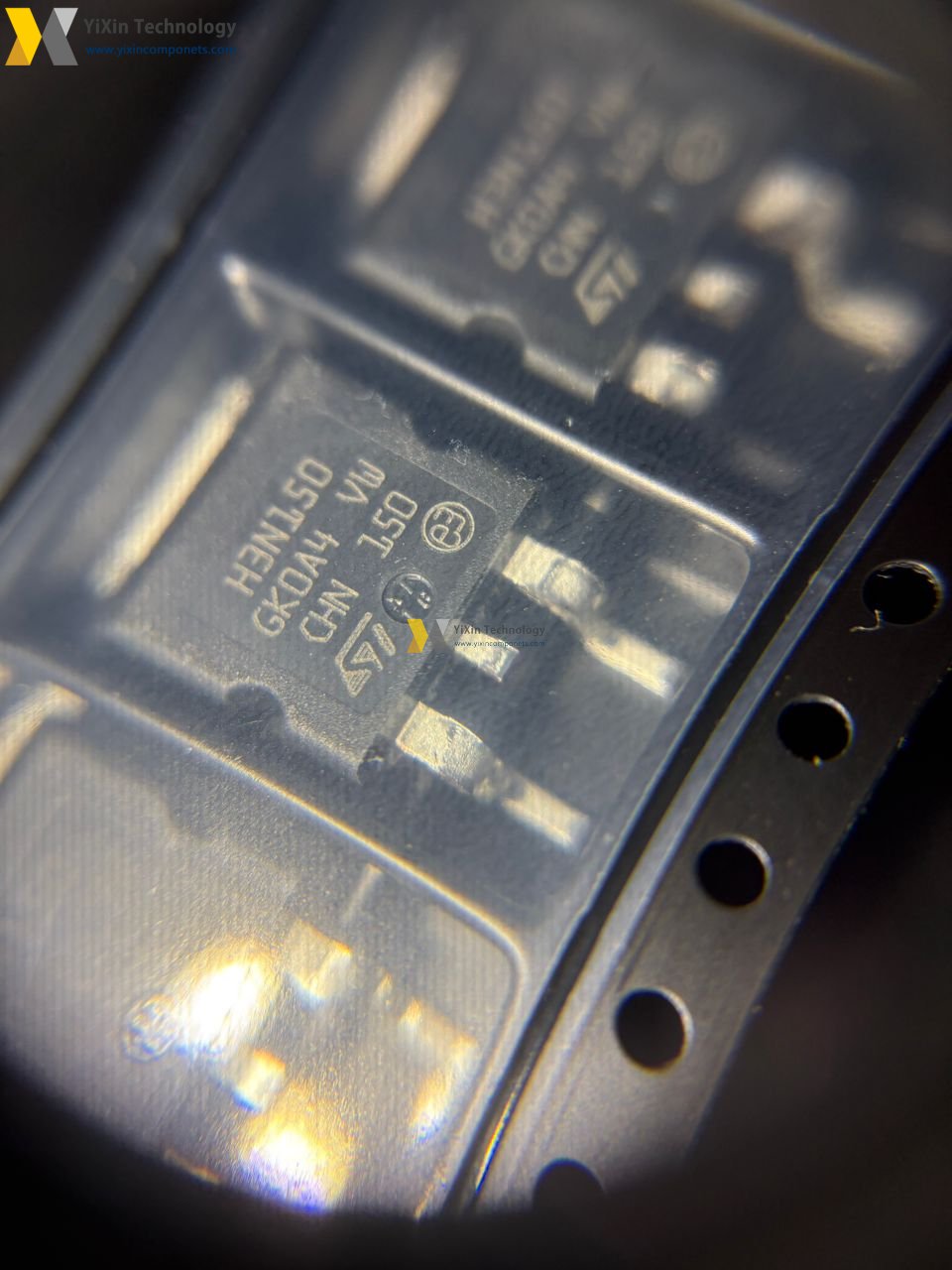

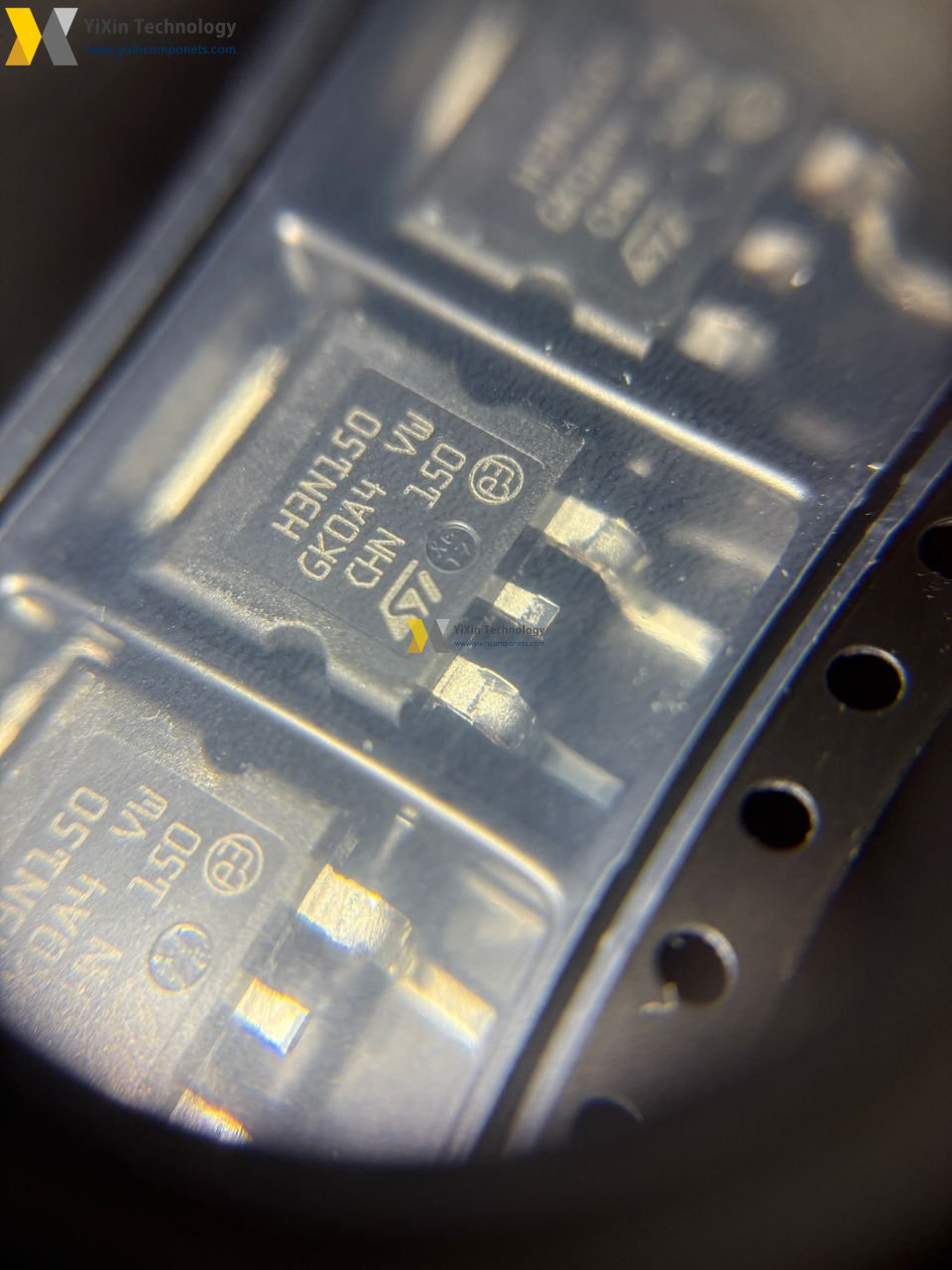

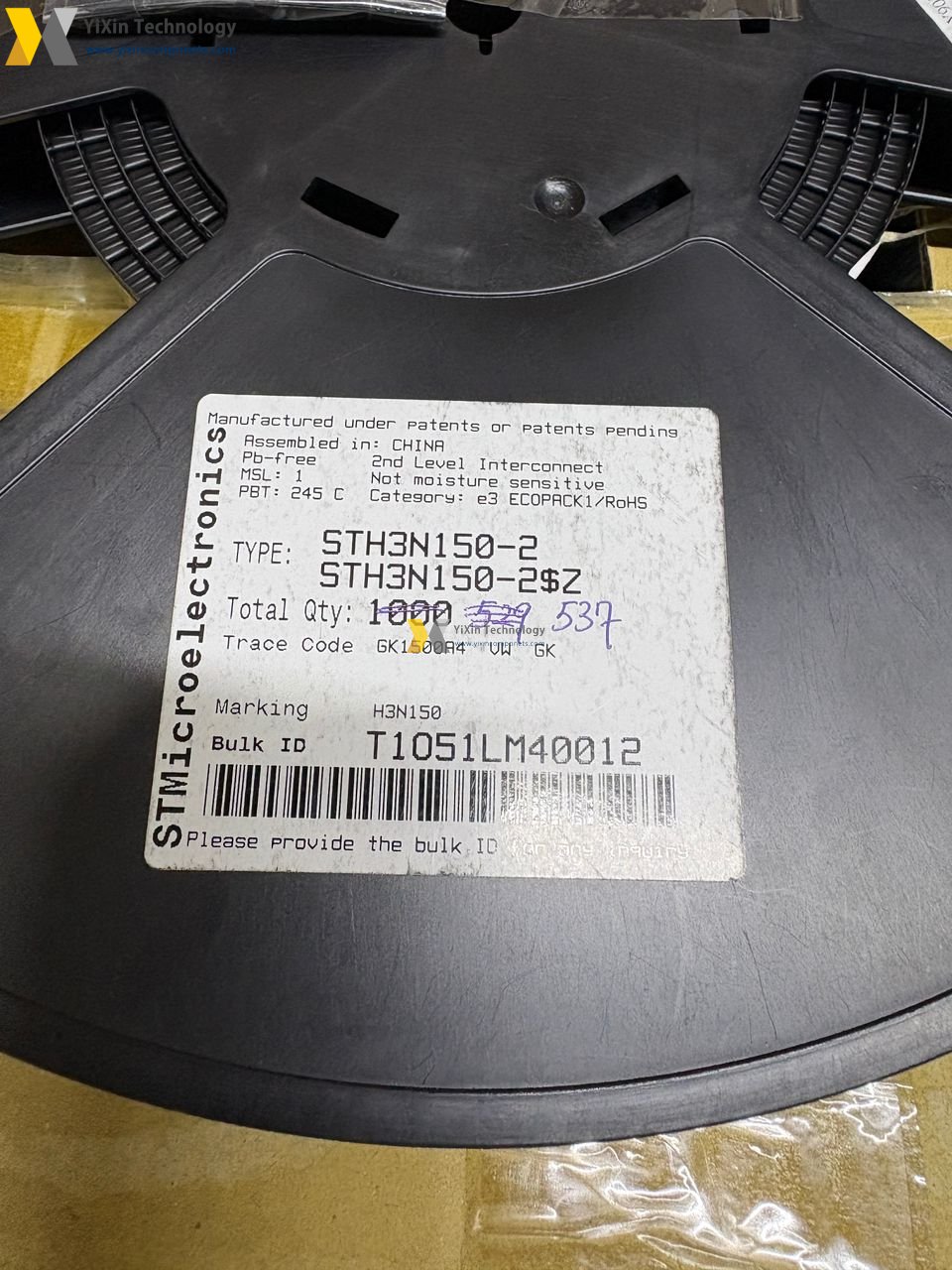

STH3N150-2
| Part Number | STH3N150-2 |
| Manufacturer | STMicroelectronics |
| Category | Transistors |
| Description | MOSFET N-CH 1500V 2.5A H2PAK-2 |
STH3N150-2 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | STH3N150-2 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | STMicroelectronics |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | PowerMESH™ |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1500V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9Ohm @ 1.3A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 29.3nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 939pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 140W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | H²PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab) Variant |
Quick Inquiry
| In Stock | 7797 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
