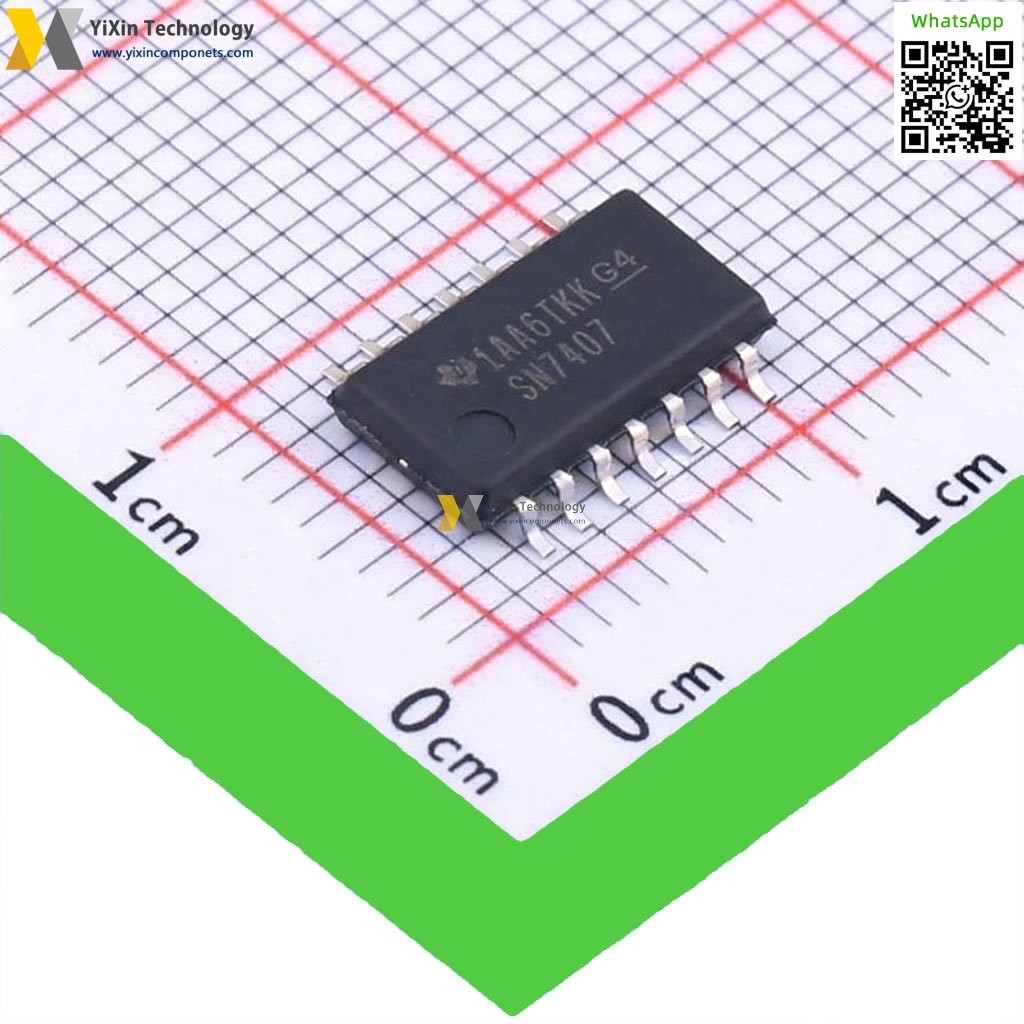

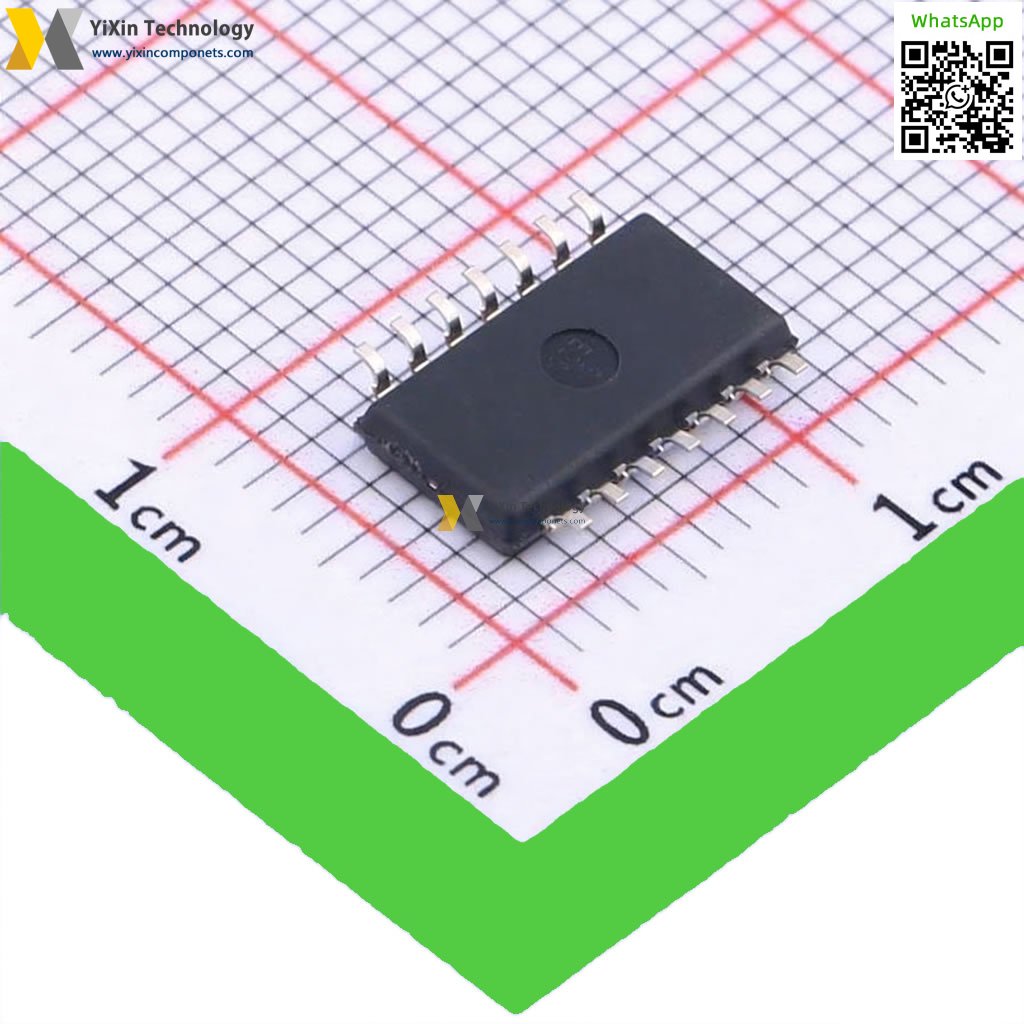

SN7407NSR
| Part Number | SN7407NSR |
| Manufacturer | Texas Instruments |
| Category | Logic ICs |
| Description | IC BUF NON-INVERT 5.25V 14SOP |
SN7407NSR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | SN7407NSR PCB Footprint and Symbol |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Buffers, Drivers, Receivers, Transceivers |
| Series | 7400 |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Collector |
| Current - Output High, Low | -, 40mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SOP |
