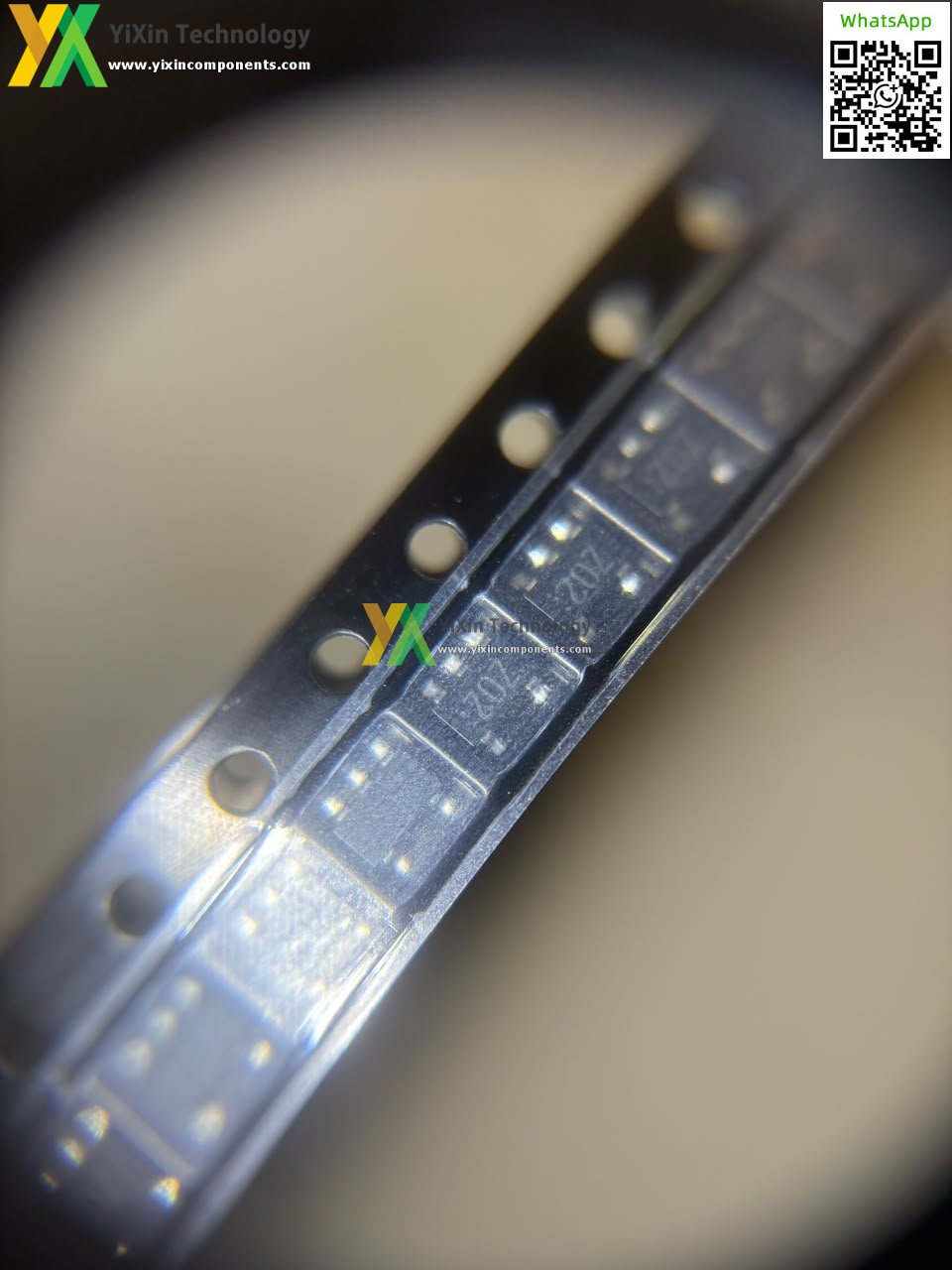

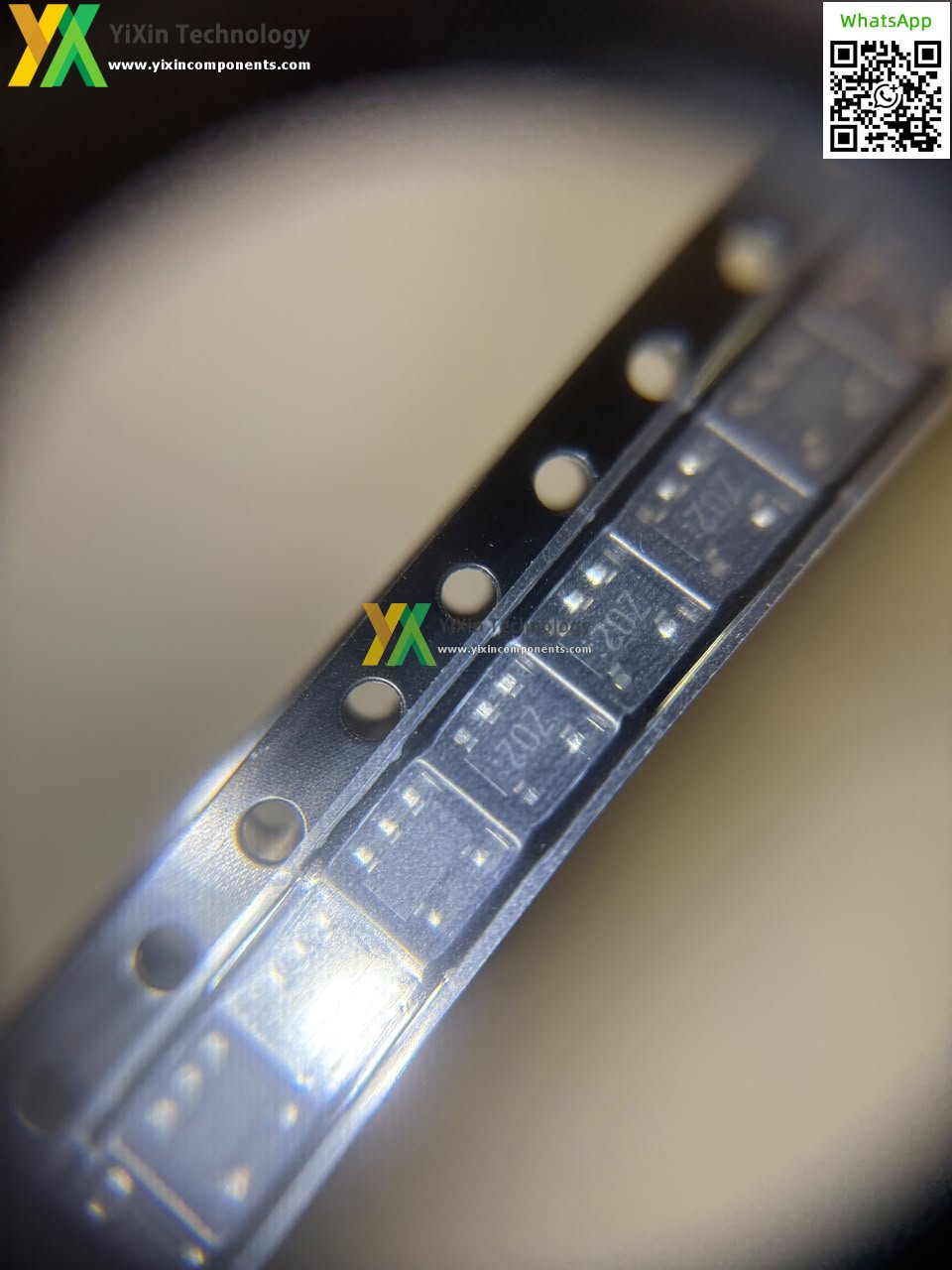

QSZ2TR
| Part Number | QSZ2TR |
| Manufacturer | Rohm Semiconductor |
| Category | Transistors |
| Description | TRANS NPN/PNP 30V 1.5A 5TSMT |
QSZ2TR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | QSZ2TR PCB Footprint and Symbol |
| Brand | Rohm Semiconductor |
| Product Line | Semiconductors |
| Subcategory | Bipolar (BJT) - Arrays |
| Series | - |
| Transistor Type | NPN, PNP (Emitter Coupled) |
| Current - Collector (Ic) (Max) | 1.5A |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Vce Saturation (Max) @ Ib, Ic | 350mV @ 50mA, 1A / 370mV @ 50mA, 1A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 270 @ 100mA, 2V |
| Power - Max | 1.25W |
| Frequency - Transition | 300MHz, 280MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSMT5 |
| part_number_key_clear | QSZ2TR |
