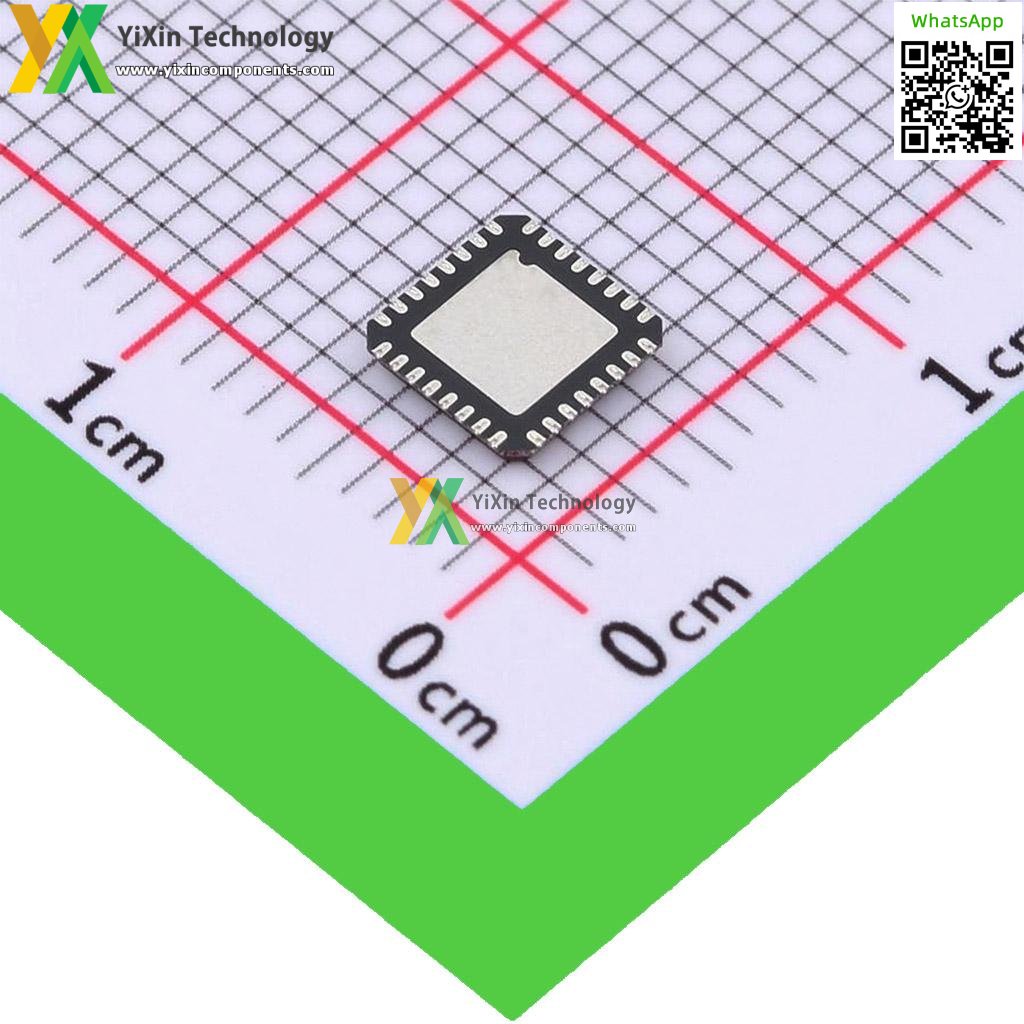

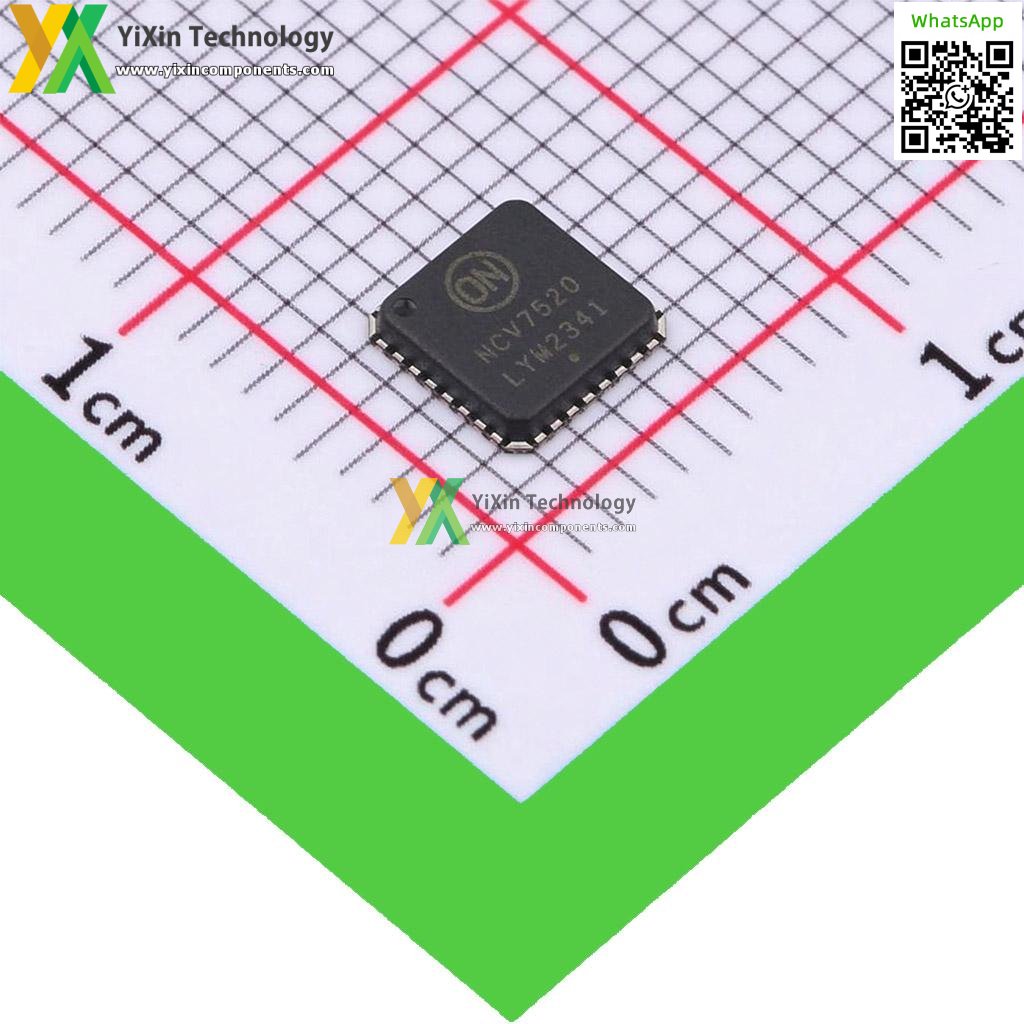

NCV7520MWTXG
| Part Number | NCV7520MWTXG |
| Category | Power Management ICs |
| Description | IC MOSFET PRE-DVR HEX LO 32QFN |
| Brand | ON Semiconductor |
NCV7520MWTXG Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NCV7520MWTXG PCB Footprint and Symbol |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | Automotive, AEC-Q100, FLEXMOS™ |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 6 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.75V ~ 5.25V |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | - |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 277ns (Max), 277ns (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| part_number_key_clear | NCV7520MWTXG |
