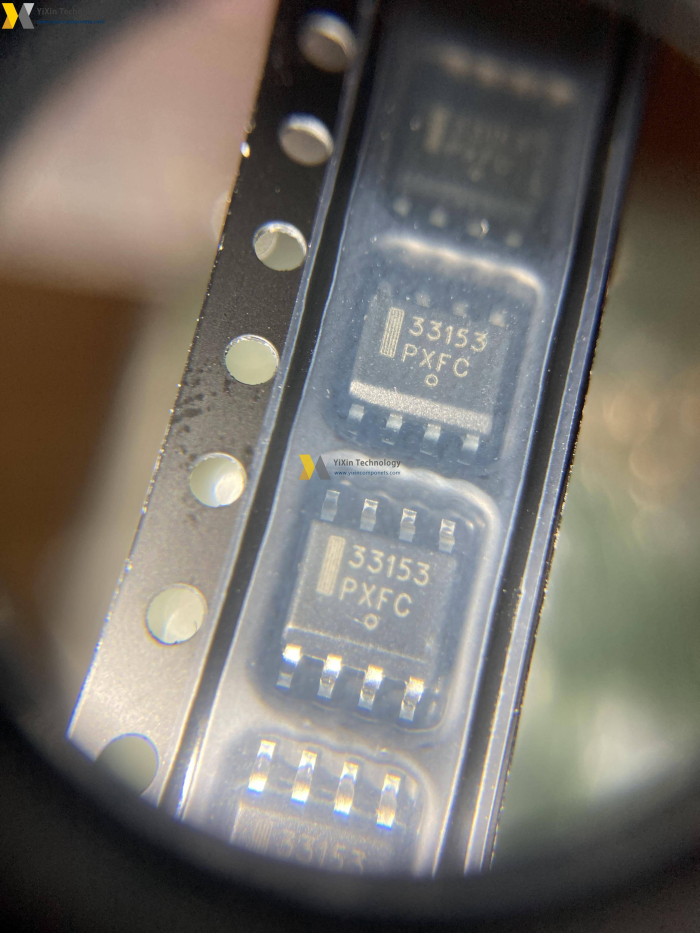

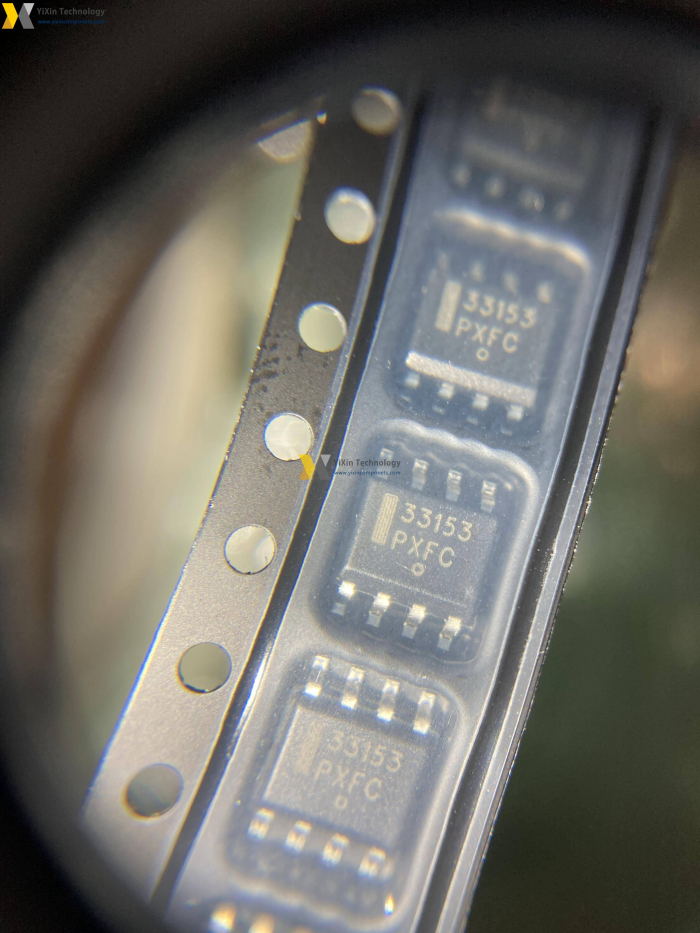

MC33153DR2G
| Part Number | MC33153DR2G |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC DRIVER GATE SINGLE IGBT 8SOIC |
MC33153DR2G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | MC33153DR2G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 11V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 3.2V |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 17ns, 17ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
