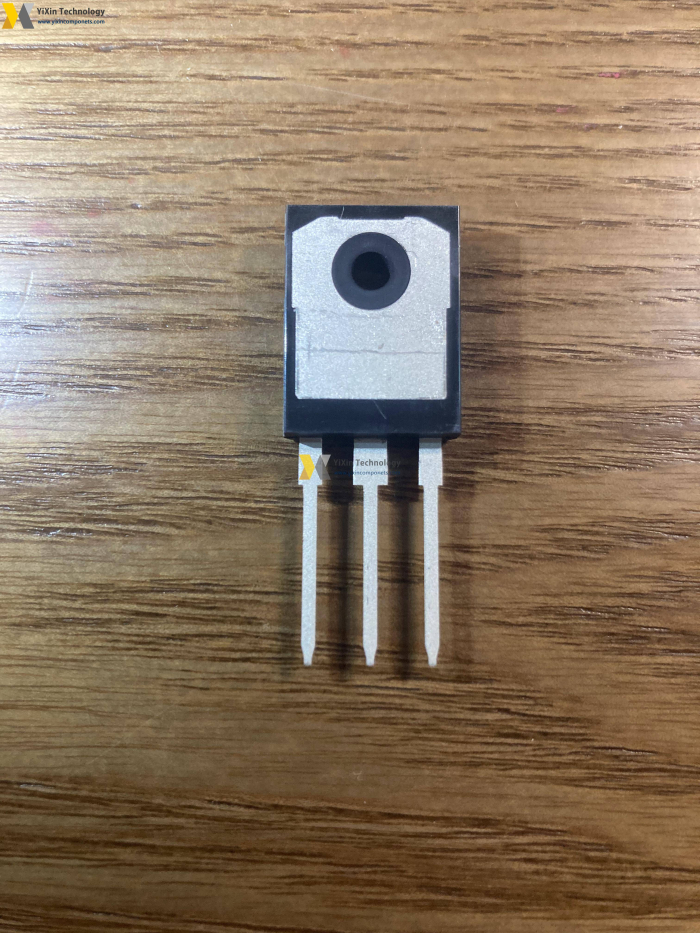

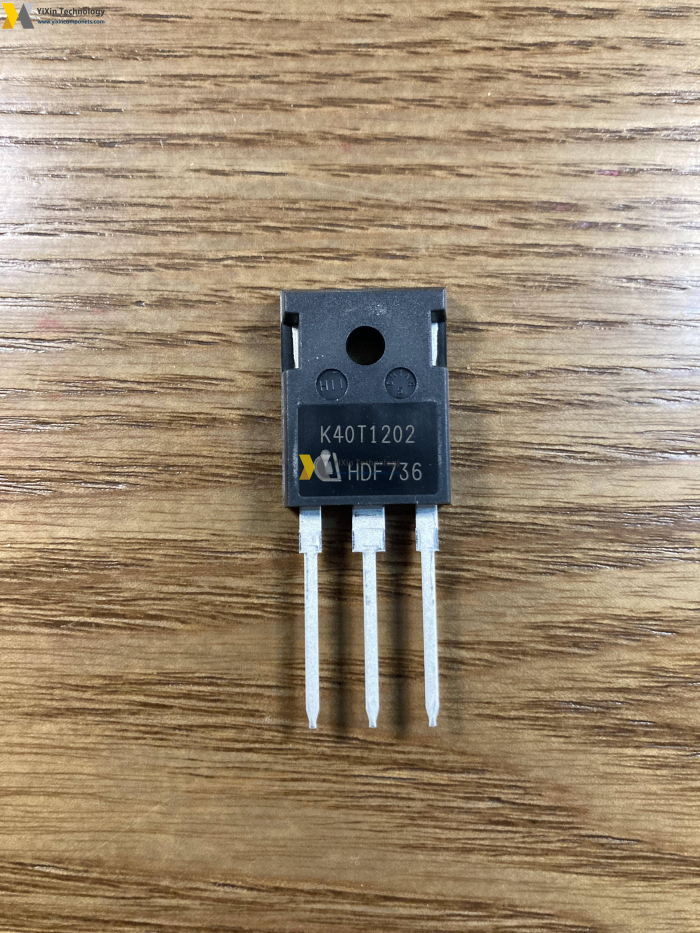

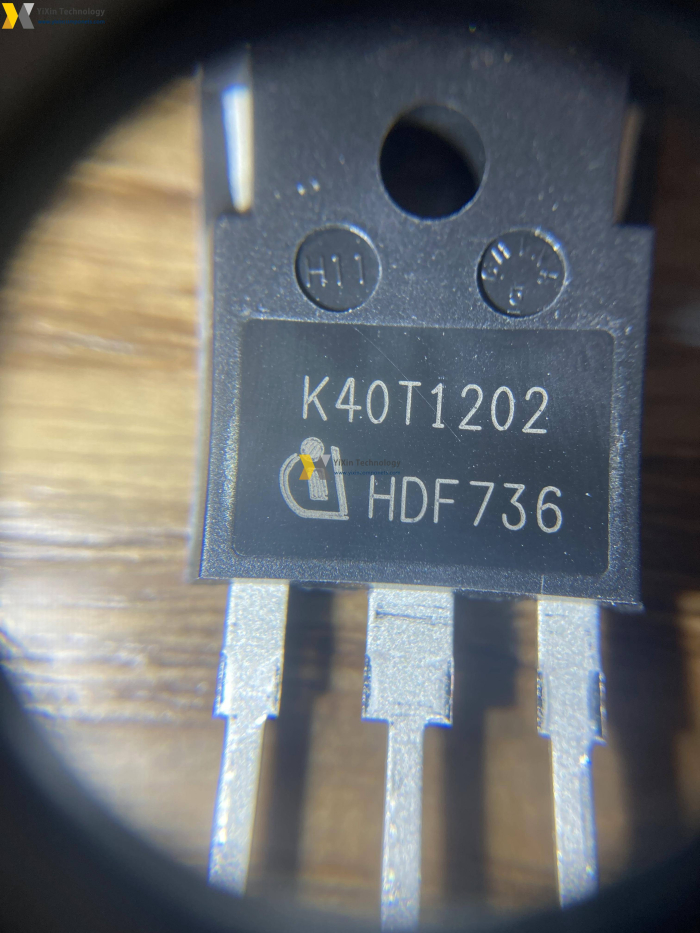

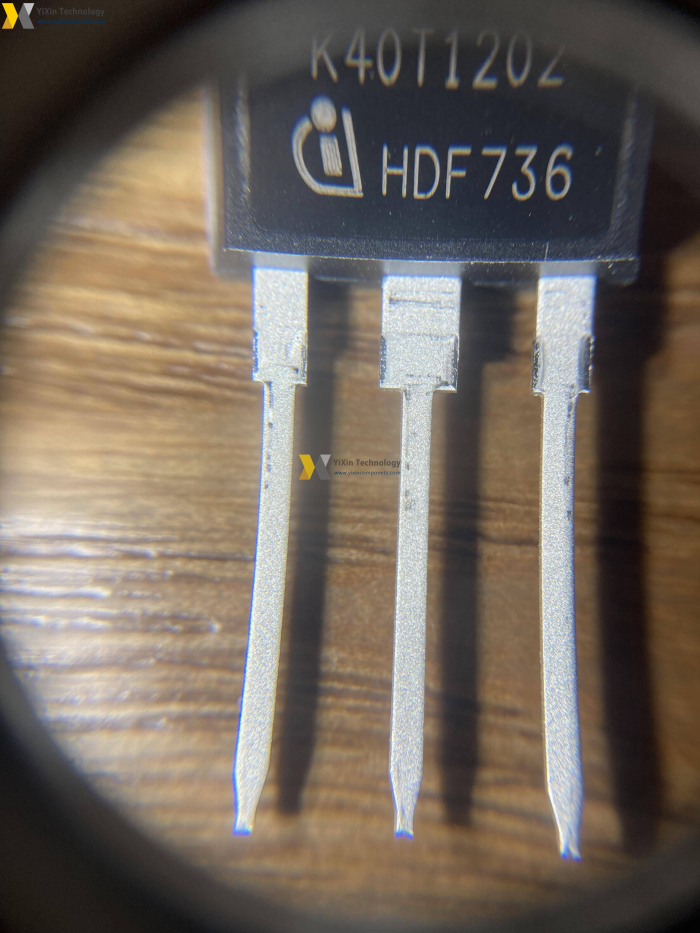

IKW40N120T2FKSA1
| Part Number | IKW40N120T2FKSA1 |
| Manufacturer | Infineon Technologies |
| Category | Transistors |
| Description | IGBT 1200V 75A 480W TO247-3 |
IKW40N120T2FKSA1 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | IKW40N120T2FKSA1 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Infineon Technologies |
| Product Line | Semiconductors |
| Subcategory | IGBTs - Single |
| Series | TrenchStop® |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 75A |
| Current - Collector Pulsed (Icm) | 160A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 40A |
| Power - Max | 480W |
| Switching Energy | 5.25mJ |
| Input Type | Standard |
| Gate Charge | 192nC |
| Td (on/off) @ 25°C | 33ns/314ns |
| Test Condition | 600V, 40A, 12Ohm, 15V |
| Reverse Recovery Time (trr) | 258ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3 |
