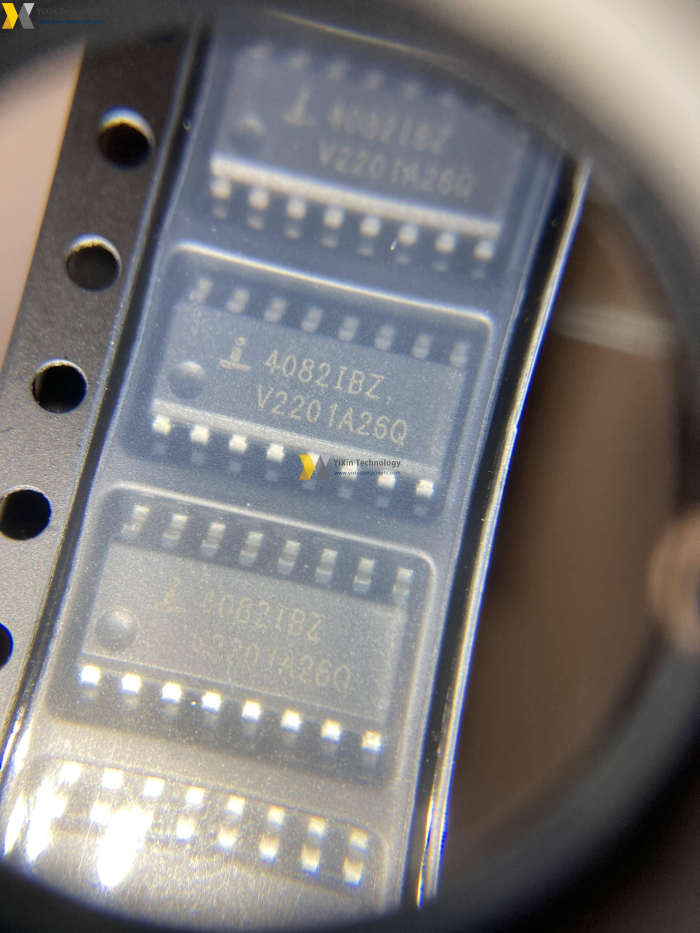

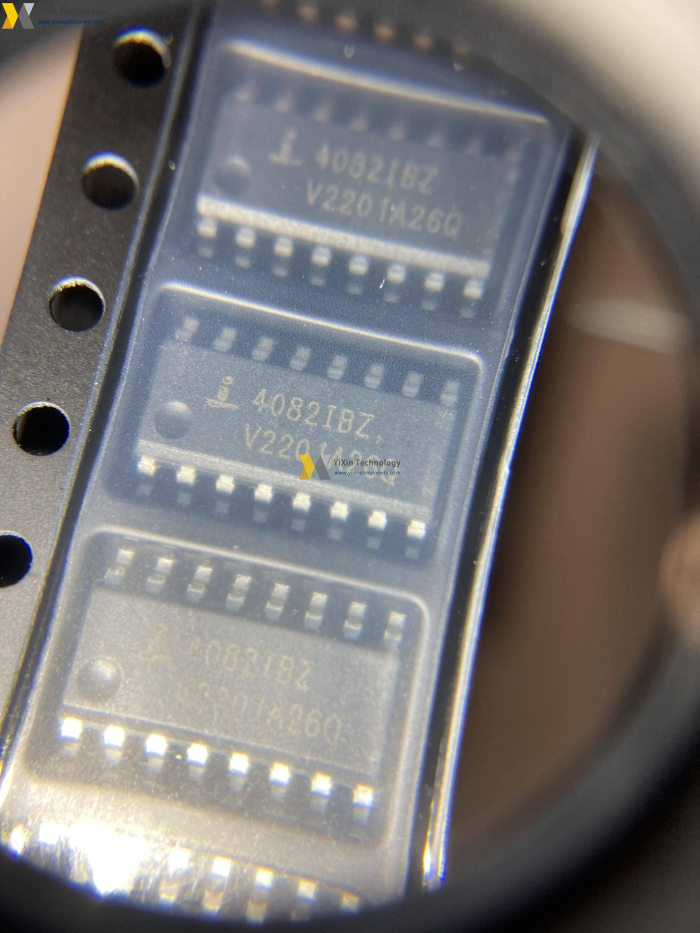

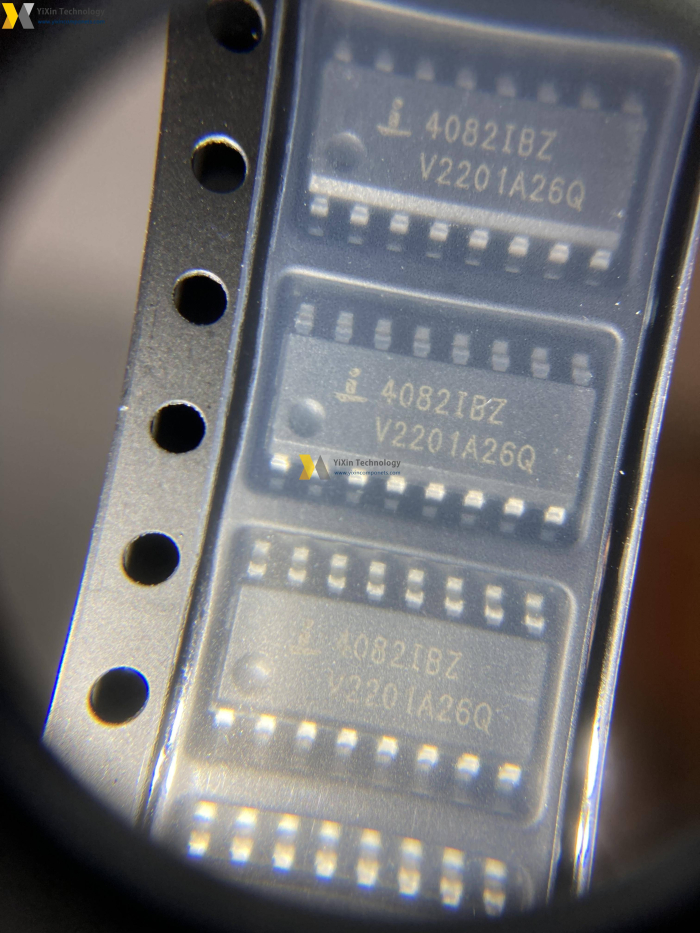

HIP4082IBZ
| Part Number | HIP4082IBZ |
| Manufacturer | Renesas Electronics America Inc. |
| Category | Power Management ICs |
| Description | IC DRIVER FET H-BRIDGE 16SOIC |
HIP4082IBZ Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | HIP4082IBZ PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Renesas Electronics America Inc. |
| Product Line | Semiconductors |
| Subcategory | Gate Drivers |
| Series | - |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 8.5V ~ 15V |
| Logic Voltage - VIL, VIH | 1V, 2.5V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 95V |
| Rise / Fall Time (Typ) | 9ns, 9ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
Quick Inquiry
| In Stock | 1351 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
