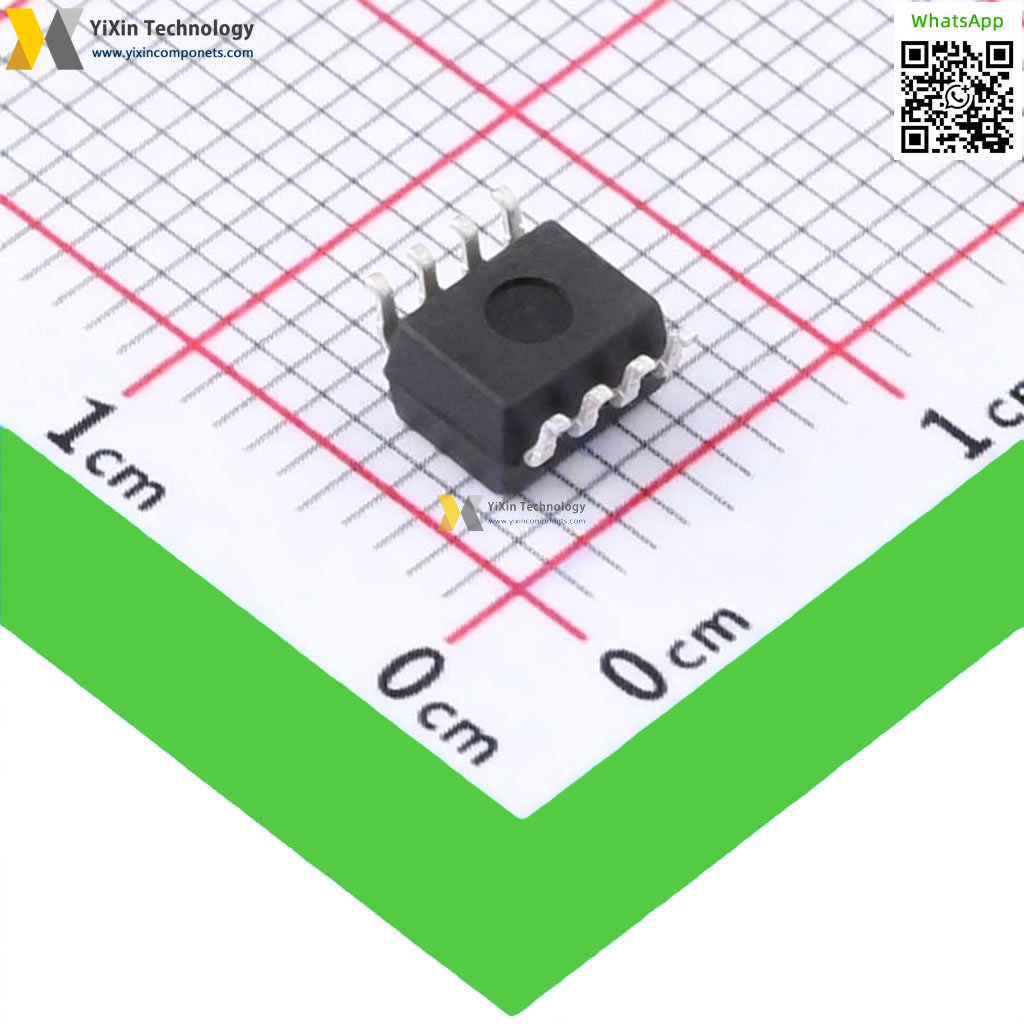

HCPL-0466-000E
| Part Number | HCPL-0466-000E |
| Manufacturer | Broadcom |
| Category | Isolators |
| Description | OPTOISO 3.75KV OPN COLLECTOR 8SO |
HCPL-0466-000E Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | HCPL-0466-000E PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Broadcom |
| Product Line | Semiconductors |
| Subcategory | Optoisolators - Logic Output |
| Series | - |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 15mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 550ns, 400ns |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 4.5V ~ 30V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
