| RoHS |
No RoHS Information
|
| EDA/CAD Models |

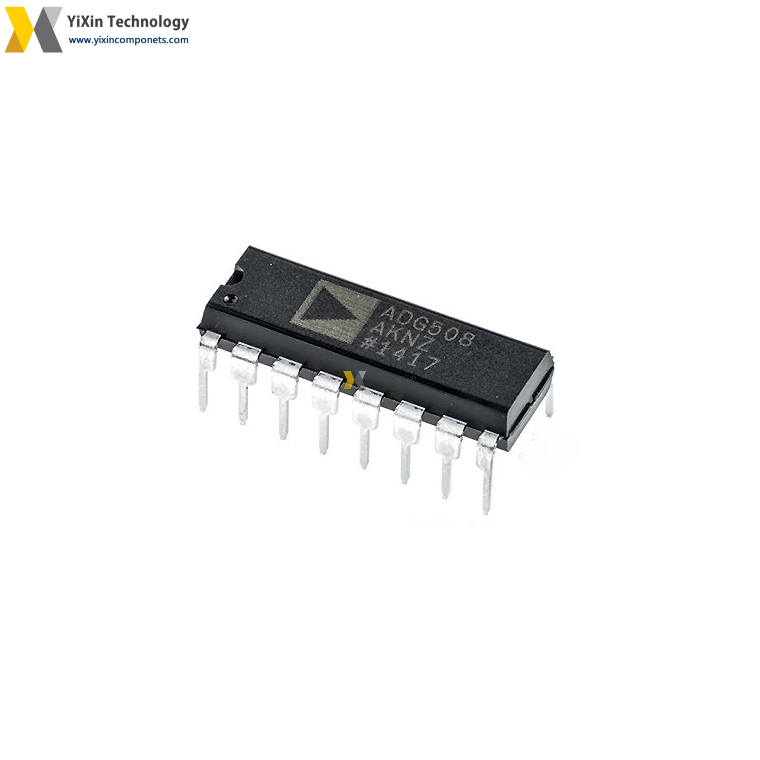

ADG508AKNZ PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
Analog Devices |
| Product Line |
Semiconductors |
| Subcategory |
Analog Switches, Multiplexers, Demultiplexers |
| Series |
- |
| Switch Circuit |
- |
| Multiplexer/Demultiplexer Circuit |
8:1 |
| Number of Circuits |
1 |
| On-State Resistance (Max) |
300Ohm |
| Channel-to-Channel Matching (ΔRon) |
15Ohm |
| Voltage - Supply, Single (V+) |
10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) |
±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) |
300ns, 300ns |
| -3db Bandwidth |
- |
| Charge Injection |
4pC |
| Channel Capacitance (CS(off), CD(off)) |
5pF, 22pF |
| Current - Leakage (IS(off)) (Max) |
1nA |
| Crosstalk |
- |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Package / Case |
16-DIP (0.300", 7.62mm) |
| Supplier Device Package |
16-PDIP |
