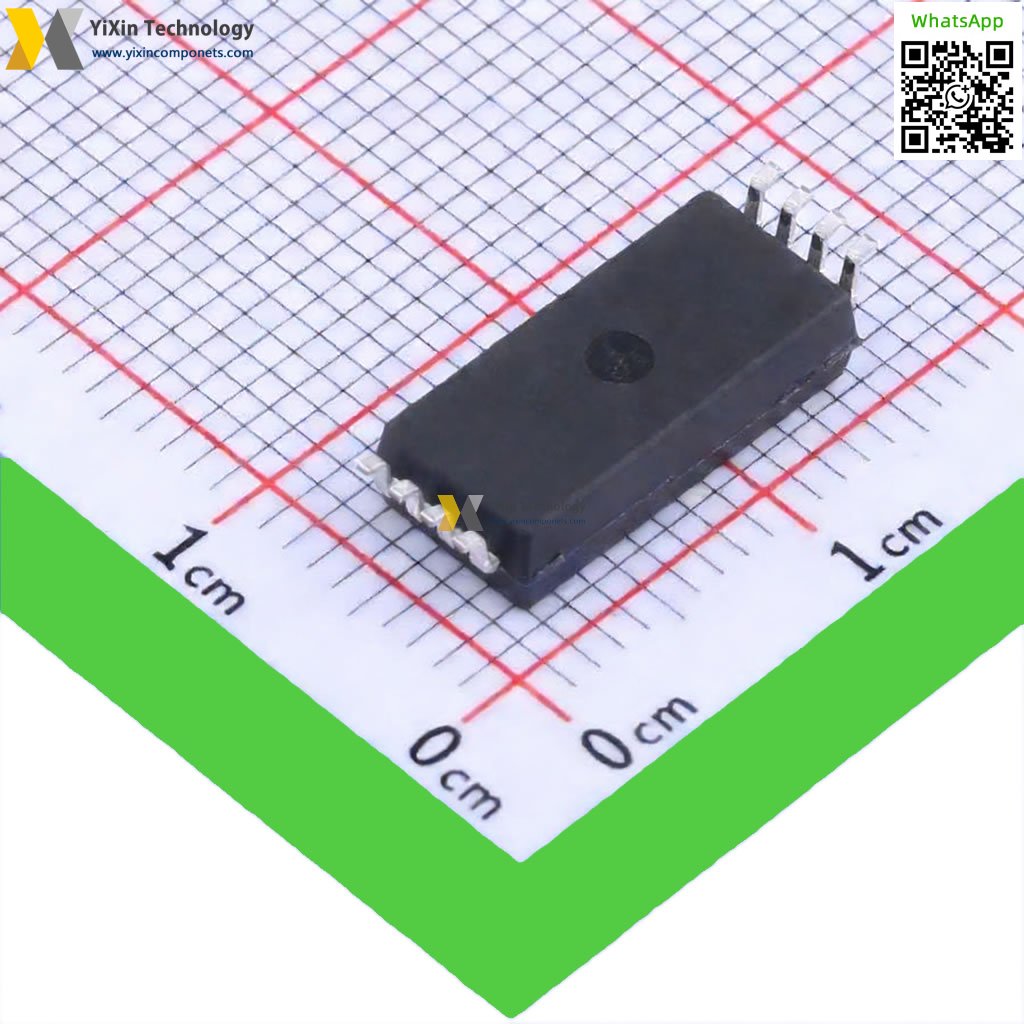

ACNT-H61L-500E
| Part Number | ACNT-H61L-500E |
| Manufacturer | Broadcom |
| Category | Isolators |
| Description | OPTOISO 7.5KV PUSH PULL 8SO |
ACNT-H61L-500E Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | ACNT-H61L-500E PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Broadcom |
| Product Line | Semiconductors |
| Subcategory | Optoisolators - Logic Output |
| Series | - |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 7500Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | - |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | - |
| Rise / Fall Time (Typ) | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.535", 13.60mm Width) |
| Supplier Device Package | 8-SO Stretched |
Quick Inquiry
| In Stock | 8791 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
