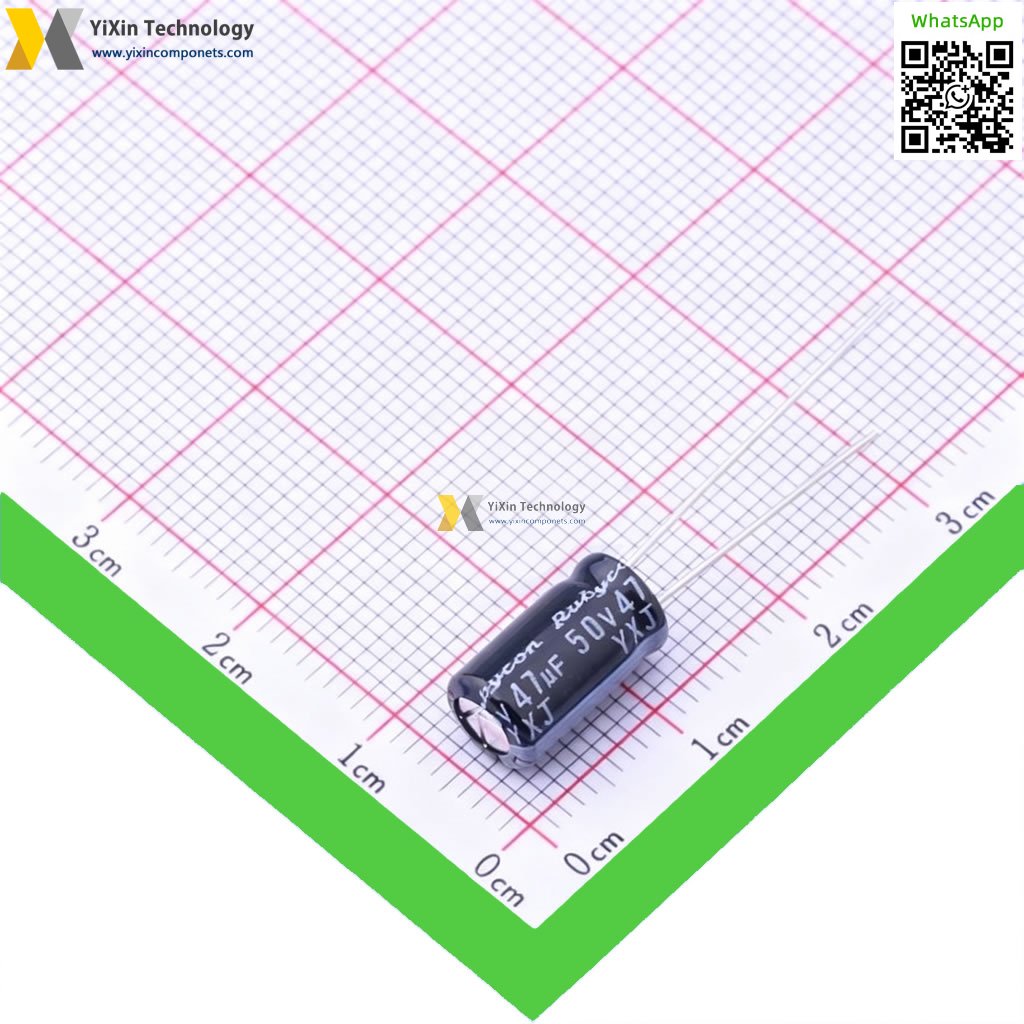

50YXJ47M6.3X11
| Part Number | 50YXJ47M6.3X11 |
| Manufacturer | Rubycon |
| Category | Capacitors |
| Description | CAP ALUM 47UF 20% 50V RADIAL |
50YXJ47M6.3X11 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 50YXJ47M6.3X11 PCB Footprint and Symbol |
| Brand | Rubycon |
| Product Line | Passive Components |
| Subcategory | Aluminum Electrolytic Capacitors |
| Series | YXJ |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 162.25mA @ 120Hz |
| Ripple Current @ High Frequency | 295mA @ 100kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
